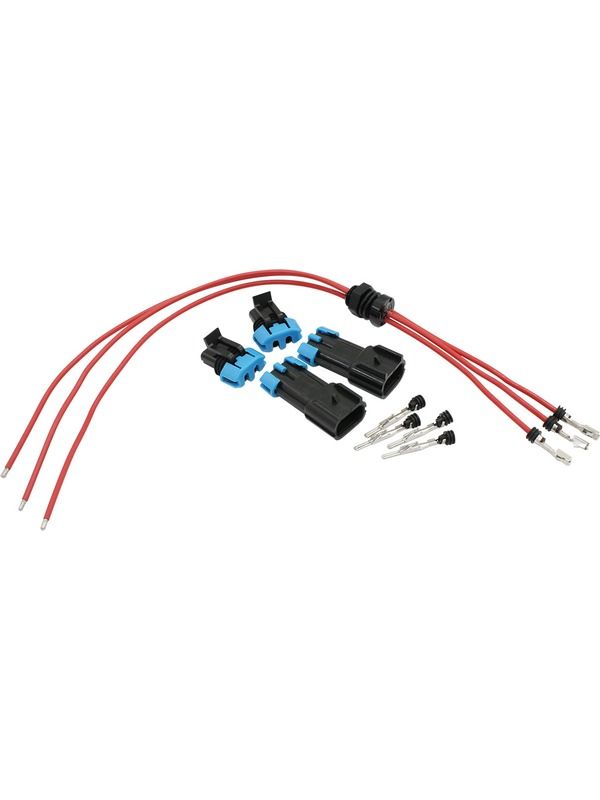

Aeroflow 3 Wire Electrical Terminal Bulkhead w/ Positive Red Wires
The Aeroflow Performance 3 wire electrical terminal bulkhead is a quality component used to wire your 40mm fuel pump in your fuel cell project. These bulkheads are designed to retrofit into all Aeroflow Performance billet triple pump hangers in place of the single electricalterminal bulkheads. Each billet bulkhead comes with three tefzel wires either red (positive) or black (negative)through a hermetic seal wire and bulkhead nut with a Viton O-ring on under side to ensurea leak free solution.
These three individual wires on each bulkhead can be wired to each individual fuel pump, allowingthe user to stage up to three fuel pumps with this setup. The wires designed to go on the inside for the fuel tank/cell are terminated with the Delphi electrical terminals and the 2-pin male plug included in the kit. Unterminated wires are exposedon the outside which will allow the user to choose from our range of electrical connectors depending on the application. Each wire is 14AWG which is designed to handle 30amp to supply enough juice to power all aftermarketfuel pumps.
