Aeroflow Air Gap Single Plane Intake Manifold Fits SB Chevy EFI AF6290-1000
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

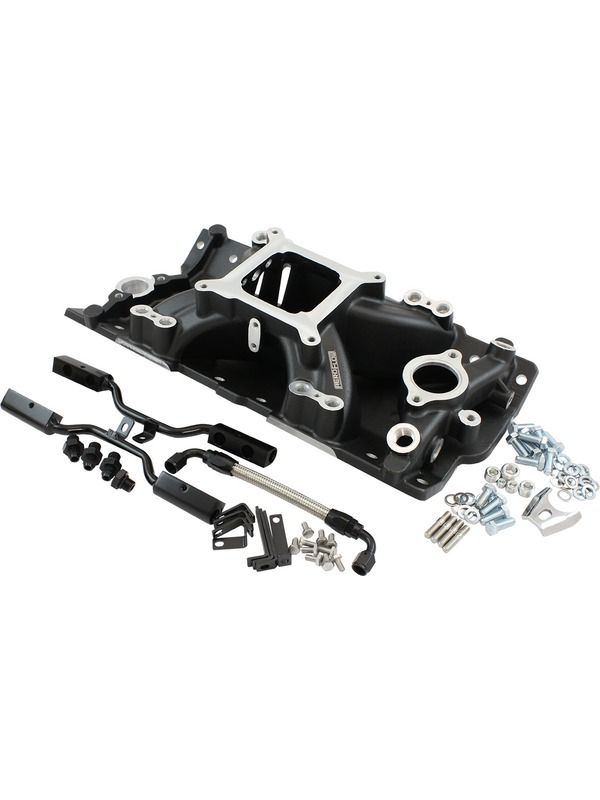

Aeroflow Air Gap Single Plane Intake Manifold Fits SB Chevy EFI
Get the maximum power from your engine with this Air Gap Small Block Chevy EFI cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies designed for EFI applications.
The fuel injectorbores have back-cut exits in the intake runners for better fuel atomization. The fuel rails, brackets and mounting hardware are included with themanifold for easy installationwith the injectors that you choose to use for your combination (fuel injector sold separately). Fuel rail isdesigned for maximum throttle lever clearance and has two different brackets to allow either a full length or short length 14mm fuel injector.
Specifically designed for 262-400 cubic inch small-block Chevy enginesoperating in the 2500 to 7500 rpm range. In most cases, these manifolds accept factoryOE water necks, air conditioning, alternator and H.E.I. ignition systems.
- Fits SmallBlock Chevy 262-400 Cubic InchEngines.
- Single Plane Configuration.
- EFI Applications ONLY.
- Suits 14mm Full Length Injectors (60.65mm) or 14mm Short Length injectors (33.60mm).
- RPM operating range - 2500 to 7500.
- Black Finish.
