Aeroflow Complete CNC Ported 213cc Aluminium Cylinder Heads AF95-2401
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

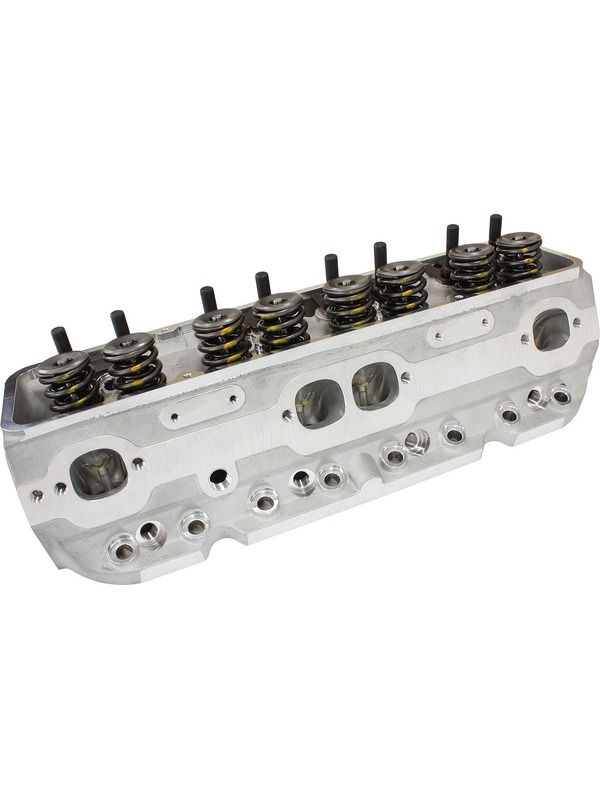

Aeroflow Complete CNC Ported 213cc Aluminium Cylinder Heads
The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance small block Chevy cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Made from A356-T6 aluminium castings, these 213cc cylinder heads feature full CNC ports and are ideal for operating in the idle to 7500 rpm range. These complete cylinder heads will fit a 4.00" bore and larger. They include larger then stock 1.57" diameter dual valve spring to handle up to .625" maximum lift. Suits mechanical and hydraulic roller camshafts.
Installed Components
Intake Valves: 2.08" x 5.00" x 8mm
Exhaust Valves: 1.60" x 5.03" x 8mm
Valve Springs: 1.57" Dual spring
Valve Retainers: 108mm
Valve Locks: 10 8mm
Valve Seals: 8mm x .502" Viton
Rocker Arm Studs: 7/16"-14 x 7/16"-24, AF59-3506
Push Rod Guide Plates: 5/16" Flat, part no. AF59-3507
