Aeroflow Engine Wiring Harness For K20 Engine From 02-04 Integra DC2 AF49-1570

Aeroflow Engine Wiring Harness For K20 Engine From 02-04 Integra DC2

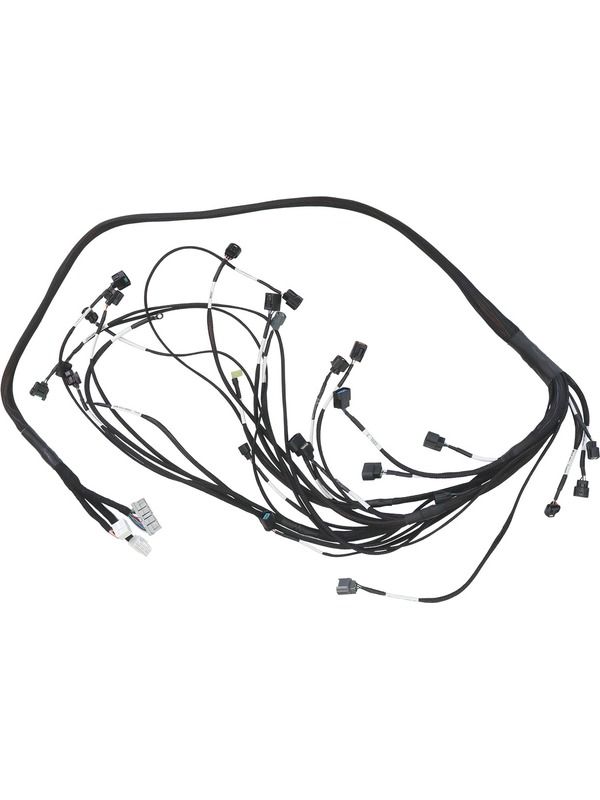

This Aeroflow Performance standalone harness is designedto replace 2002-2004 Integra DC5 & EP3 Type-R engine wiring harness. This harness can also be used as a universal K series harness forother Honda models when using the K20 platform. The alternator plug, knock sensor and starter motor plug is integrated into the engine harness but the alternator & starter power cables arenot included. A single wire temperature sensor wire for k-swap cars with stock clusterand two extra wires run from the ECU to under the intake manifold for a EVAP Delete. Extra-long wires for both style vehicle speed sensor locations and an extended length of harness at the ECU will allow flexible routing options when mounting the ecu and routing through the firewall. All plugs are clearly labelled for an easy install.

Note: to use this harness on a 05-06 integra or Cl7/9 Transmission will need to swap the plug & pinout to suit the VSS.

Note: NO water coolant temp sensor is locatedin this wiring harness and must be wired separately.

HARNESS CONNECTOR LIST:
VTEC solenoid
VTC
Oil pressure sending unit
Crank Sensor (CKP) (02-04 K20 style)
Coils 1-4
Cam (CPS) Exhaust Side
Top Dead Center sensor (TDC) Intake Side
Engine CoolantTemp (ECT) (02-04 K20 style)
Knock Sensor (KS) (02-04 K20 style)
Intake Air Temperature (IAT)
Alternator (02-04 K20 style)
Manifold Air Pressure (MAP) Throttle Position Sensor
(TPS) Idle control motor
Electronic speed sensor (VSS)
Injectors 1-4
h20 sending unit (for gauge cluster)
Reverse Lights
Reverse Lockout solenoid
Starter signal
Computer plugs A and B
Power distribution cap
Ground
2 Extra Wires
