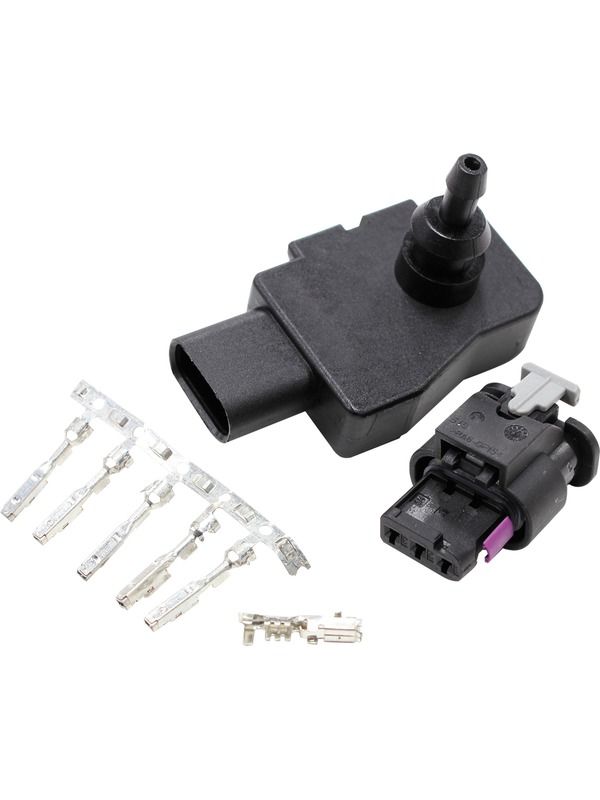

Aeroflow Map Sensor Manifold Absolute
The Aeroflow Performance Manifold Absolute Pressure (MAP) sensor is a 3 bar MAP sensor. This sensor is used todetermine engine load on forced induction engines. Thissensor is intended to be used on engines producing positive manifold pressure up to 2 bar,or roughly 30psi of boost. This sensor is not recommendedfor use with engines that willnot see boost above 1 bar, as it limits sensor resolution. This sensor is fully calibrated for high accuracy and designed for high stability across the temperature range. It includesthe plug and pins to easily wire into any application.
- This sensor has a 5mm vacuum barb
- Overall length is52mm
- Overall width is 27.50mm
- Overall body height is 11.60mm
- Operating pressure range is 20 kpa to 400kpa
- Supply voltage range is 4.65 to 5.35 volts (working voltage is 5 volts)
- Response working time is 1 millisecond
