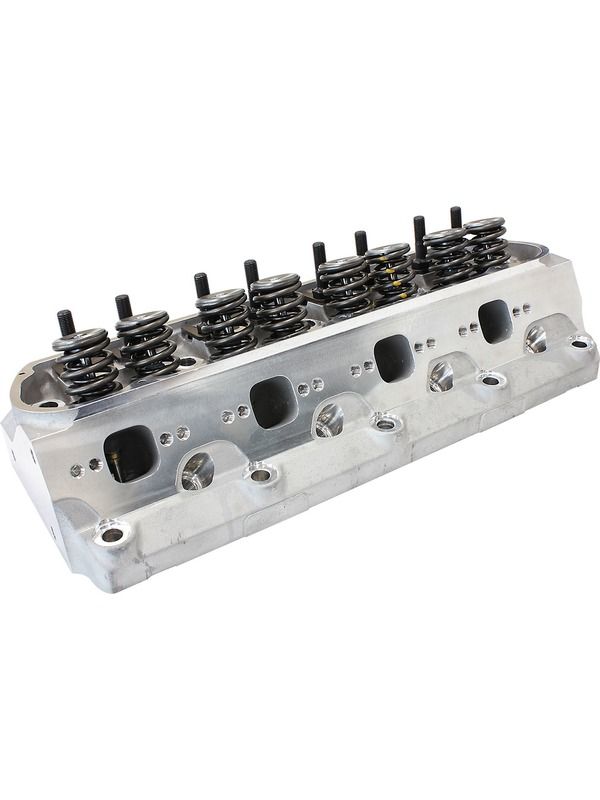

Aeroflow Sbf 205Cc Aluminium Cylinder Heads Asse AF95-2360
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Aeroflow Sbf 205Cc Aluminium Cylinder Heads Asse
The Aeroflow Series of Aluminium Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminium castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance small block Ford Windsor cylinder heads are designed for street / race performance engines to give the ultimate in flow at a budget price. Made from A356 aluminium castings the 203cc cylinder heads are ideal for operating in the idle to 7500 rpm range. The complete heads include larger then stock 1.575" diameter dual valve spring to handle up to .710" maximum lift. Suits hydraulic roller camshaft.
Note: These heads are drilled for 1/2" head bolts. If using a 7/16" bolt, you must use a head bolt bushing kit or step down head bolts.
Installed Components
Intake Valves: 2.08" x 5.00" x 8mm, part no. AF59-3030
Exhaust Valves: 1.60" x 5.03" x 8mm, part no. AF59-3031
Valve Springs: 1.575" Dual spring
Valve Retainers: 10 8mm
Valve Locks: 10 8mm
Valve Seals: 8mm x .502" Viton
Rocker Arm Studs: 7/16"-14 x 7/16"-24, part no. AF59-3026
Push Rod Guide Plates: 5/16" Flat, part no. AF59-3027
