Aeromotive Brushless A1000 Fuel Cell with Variable Speed Controller 18380
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

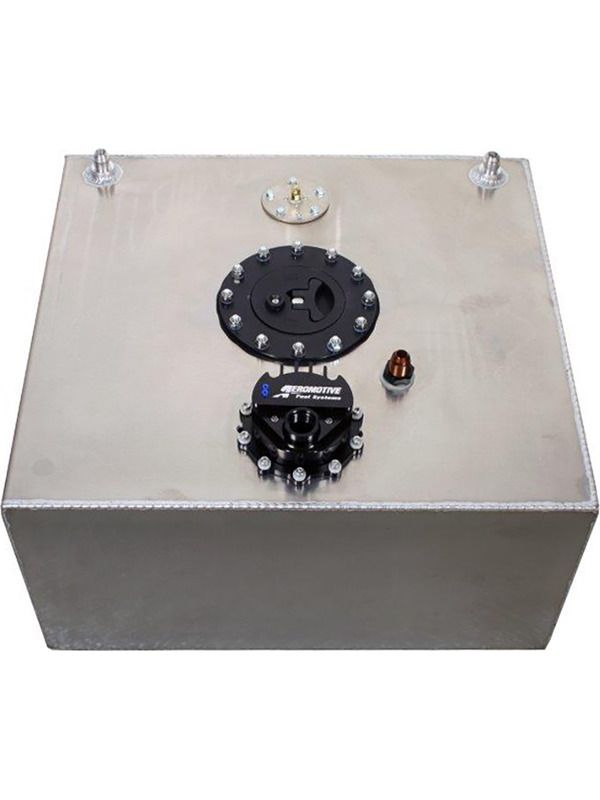

Aeromotive Brushless A1000 Fuel Cell with Variable Speed Controller
15-gallon Street/Strip Fuel Cell with Stealth A1000 Brushless Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and dual, roll-over protected AN-08 vents. This is the same fuel cell design, but with larger capacity of 15-gal vs 6-gal used in the Ford Cobra Jet, Chevy COPO Camaro and many of the MOPAR Drag Pack cars.
Baffled design keeps fuel at the pump inlet
Fluted pickup with integrated 100-m prefilter
Fuel Cell Dimensions: 20"w x 18"l x 10"h
Integral 0-90 ohm fuel level sending unit
The A1000 performance you expect and more:
Fuel Injected Engines:
up to 1300 FWHP - naturally aspirated
up to 1000 FWHP - Forced air induction
Carbureted Engines:
up to 1500 FWHP - naturally aspirated
up to 1200 FWHP - forced air induction
E85 Compatible pump, reduce max FWHP by 30%
Lighter than the traditional A1000 pump.
Reduced current draw at higher, EFI pressures.
Extended service life in methanol and ethanol.
Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
Quieter than the traditional A1000 pump.
ORB-10 outlet port.
Requires straight 12-VDC to 16-VDC power supply.
Not compatible with pulse modulated systems or fuel pump speed controllers.
EFI rated flow of 700 lbs./hr. @ 45 psi, 13.5 volts
Carb rated flow of 900 lbs./hr. @ 9 psi, 13.5 volts
