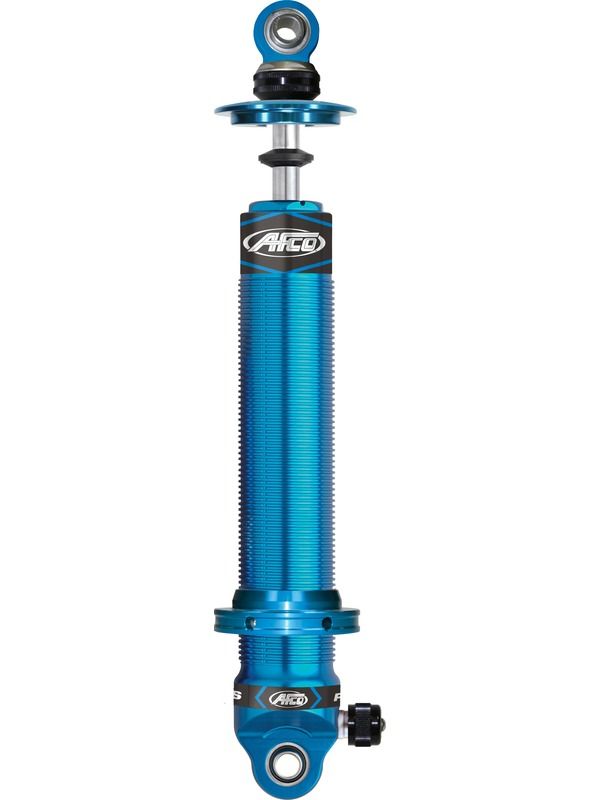

Afco Coil-Over Big Gun X Slicks Twin Tube Aluminium Shock 4in Stroke 3840BGX
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Afco Coil-Over Big Gun X Slicks Twin Tube Aluminium Shock 4in Stroke
BOOSTED 7682 V-BandTurbocharger Specifications
Recommended horsepower rating: 750-1500HP
Recommended engine displacement: 2.0L to 7.0L
- Dualceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Portedshroud compressor cover
-Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feedfitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- M14 x 1.5mm coolant port thread
- 1/4" NPT to -4AN oil feed fitting with in-builtrestrictor attached to a 38mm 2-bolt oil feed plate with M8 x 1.25mm thread size
- 50.80mm bolt centre turbo drain flange with M8 x 1.25mm thread size
Compressor Specifications
Inducer: 76mm
Exducer: 109mm
Extended Tip: 116mm
A/R: 0.85
Compressor Inlet: 5" Slip fit
Compressor Outlet:V-Band (AF8080-1009)
Turbine Specifications
Inducer: 89mm
Exducer: 82mm
A/R: 1.01
Turbine Inlet Flange: V-Band (AF8080-1019)
Turbine Outlet Flange: V-Band (AF8080-1018)
Wastegate
External wastegate
