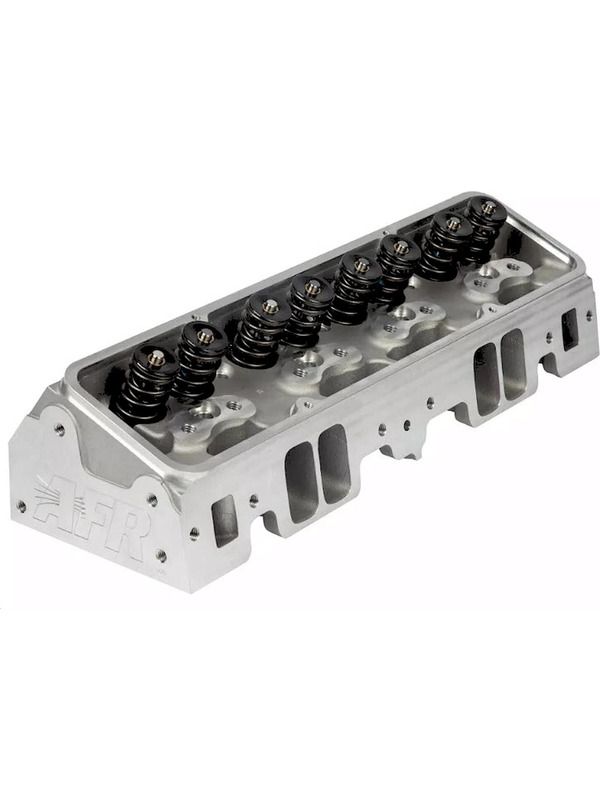

Air Flow Research Enforcer 200cc Cylinder Heads Angle Plug SBC 1016
MPN: 1016
|
RPI: 3289581
$1,818.63
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Air Flow Research Enforcer 200cc Cylinder Heads Angle Plug SBC
Specifications & Features:
- Material: A356 Aluminum or international equivalent
- Intake Port Volume: 198 - 200c
- Intake Port Dimension: 2.080" H x 1.270" x 5/16 Radius
- Intake Port Location: Stock
- Exhaust Port Volume: 74cc
- Exhaust Port Dimension: 1.450" H x 1.550" W
- Exhaust Port Location: Stock
- Combustion Chamber Size: 69cc
- Valve Cover Bolt Pattern: Perimeter Bolt
- Valve Angle: 23
- Valve Spring Pocket Diameter: 1.500" O.D
- Max Valve Spring Pocket Machining: 1.580" O.D - Warning: Do not machine spring pad any deeper.
- Deck Thickness: .470"
- Minimum Bore Diameter: 4.000"
- Minimum Head Gasket Bore: 4.100"
- Flat Mill: .006" per cc 56cc Maximum
- Spark Plug Dimensions: 14mm x .750" w/Gasket Seat
