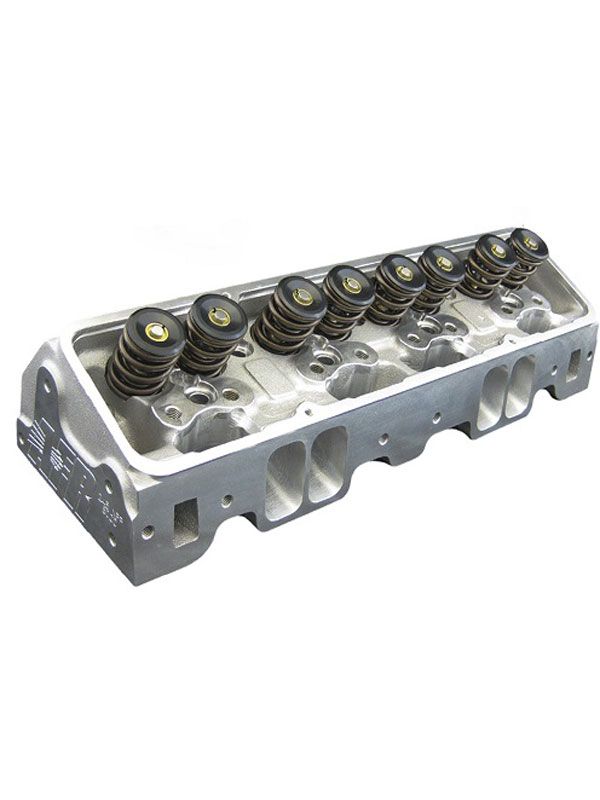

Air Flow Research Sbc Complete Heads 245 Int Vol 70Cc Chambers Std Exh H 1137
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
AFR is proud to introduceour new 245 NPP (no pushrodpinch); best suited for maxeffort applications, butlarger displacement 427+ pumpgas engines could considerthis head as well. Thisexciting product representsour best flowing 23 SBChead to date and while flownumbers may reflect a verygood 18 head of thepast, this head is still aconventional direct bolt onnon-raised runner intake portconfiguration. It will dropon your 23 short blockas easily as our 227 or 235SBC product and in factshares identical valvecenterlines and rocker studlocations to both of thoseheads. However, unlike the227 and 235 heads, thisproduct will not accept studmount style rockers and ashaft mount rocker systemwith a .180 offset intakelifter is required. Largerdiameter 3/8" pushrods fitwithout additionalclearancing. This isprimarilydue to the fact we enlargedand widened the pushrod pinchremoving that checkpoint inthe entrance of the intakeallowing us to design a portwith a more direct shot atthe back of the valve thatalso has a more consistentcross sectional area andvelocity profile. Inaddition, this head comesstandard with a 3/4 inchdeck, 2.125 intake and 1.600exhaust. The exhaust port andbolt pattern are raised .250over GM L98 head(seefootnotes here), this rarelyaffects header or chassisfitment. If you are unsure ifthis is the right AFR headfor you, we encourage you tocontact us directly todiscuss your combination.
Basic PackageComponents:
- 100% CNC PortedCombustion Chambers
- 100% CNC Ported Exhaust Ports
- 100% CNC PortedIntake Ports
- Competition 5-angle Valve Job
- Bead Lock IntakeValve, 2.125" x 5.006"Overall Valve Length
- Bead Lock Exhaust Valve,1.600" x 5.024" Overall ValveLength
- PAC RacingSprings 1.550" OD Solidler Dual Valve Spring Pac#1225, 250 lbs on seat, .800"maximum lift, Max RPM8300-8500
- 8511Manley10 4140 Chrome MolyRetainers
- 10Bead Lock Valve Keepers
- Viton Valve Seals
- Hardened Spring Seat
- Intake Valve Seats
- Exhaust Valve Seats
- Bronze Valve Guides
