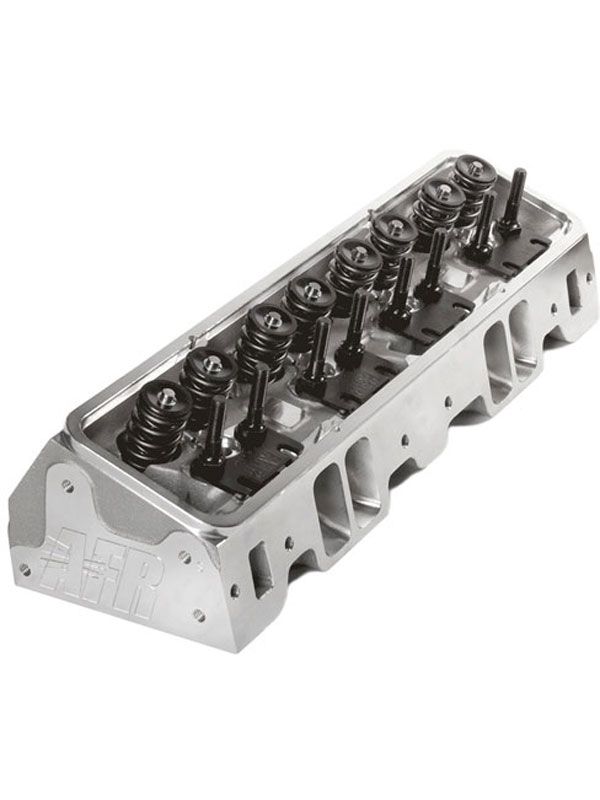

Air Flow Research Sbc Eliminator 235Cc Complete 80Cc Angl Plug Comp Pack 1130
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
With the price of bigdisplacement SBC enginesfraction of what they wereyears ago, the allure to goBIG is stronger than ever. Tohelp quench the thirst ofthat large displacementmonster AFR is proud to offerthe largest direct bolt on23 Chevy head yet. At235 cc's, anything under 400inches can look the otherway. It has the same geometryas the 227 head and willaccept all the same rockerarms, stud girdles, etc. AFRoffset stud girdles are theonly special parts required.Some applications requireshaft mount rockers or .050offset intake rocker arm fordurability and reliability ofvalve train components.Standard rocker arms can beused but the intake rockerarm will be at a slight angleand the roller tip will notbe perfectly centered on thevalve. It will feature alarger 2.125 diameter intakevalve. Exhaust valve diameterstays the same with a littlemore flow from its largerrunner volume. The big newsis our all new intake portdesign which pushes thisstandard location intake portover 335 CFM's! That's18 territory and thishead should be able togenerate power figures thatrival those heads (725+ HP).
Basic PackageComponents:- 100% CNC PortedCombustion Chambers
- 100% CNC Ported Exhaust Ports
- 100% CNC PortedIntake Ports
- 3-angleRadiused Valve Job
- Bead Lock Intake Valve,2.125" x .100" long
- Bead Lock ExhaustValve, 1.600" x.100" long
- 1.550" OD Roller DualValve Spring, 225 lbs onseat, .710" maximum lift
- 10 4140 ChromeMoly Retainers
- 10 Bead Lock ValveKeepers
- 7/16"Rocker Studs
- GuidePlates
- Viton ValveSeals
- Hardened SpringSeat
- Intake ValveSeats
- Exhaust ValveSeats
- Bronze ValveGuides
