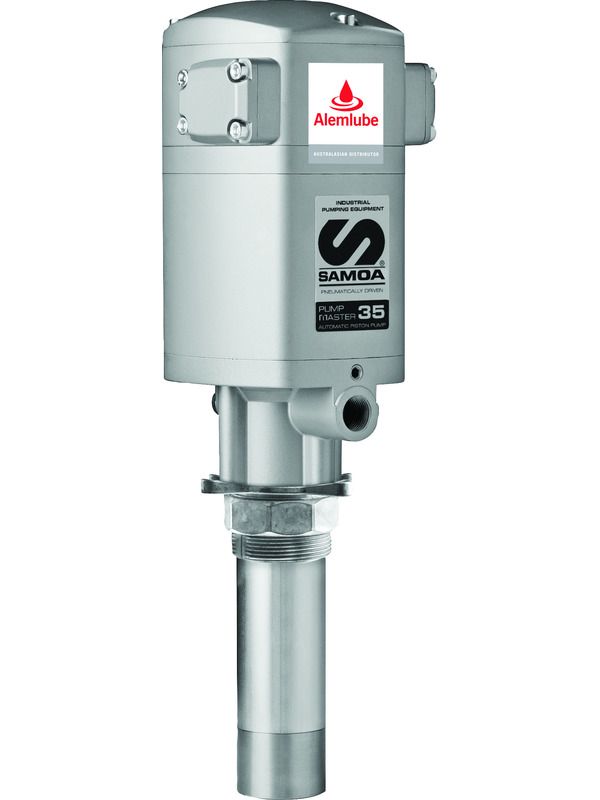

Alemlube 5:1 Ratio Air Operated Oil Transfer Stub Pump 535530
MPN: 535530
|
RPI: 2507490
$1,683.68
Trackable Shipping
Australia Wide
Handling Time
3-5 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 3-5 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Double acting air operated 5:1 ratio transfer stub pump
4-1/2” (115mm) air motor
Air pressure rating 30 to 175psi (2 to 12bar)
Air consumption: 350 Nl/min (12.4 scfm)
Maximum fluid outlet pressure: 875psi(60bar)
Air motor effective diameter: 80mm
Air motor stroke: 80mm
Flow rates of up to 30 L/min
3/8” BSP (f) air inlet
1 1/2” BSP (f) fluid inlet 1/2” BSP (f) fluid outlet
Wetted & seal materials:Hard Chrome Steel/Steel/Polyurethane/NBR/Aluminium
Noise level: 80dB
Total pump height: 469mm
Weight: 6kg
