Alemlube Flomec GRN Aluminium Body Display with Fascia Protector with 4-20mA RT141D0FM
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

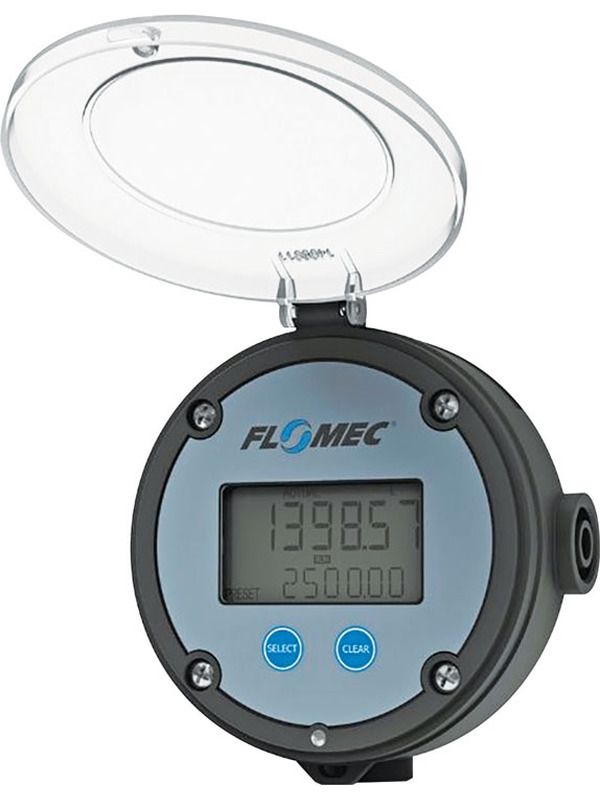

The FLOMEC RT14 Rate Totaliser is the perfect display for users who require a more sophisticated local display which can also interface with external control or monitoring equipment. The RT14 features a backlit LCD, which provides optimal readability from a distance or in low-light conditions. Various output options are available to suit almost any flow measurement application, with a 4-20mA analogue signal for flowrate feedback and control, flow alarms for monitoring of critical processes, and a scaled pulse signal for remote monitoring of total volumes. The RT14 is housed in a robust glass reinforced nylon enclosure with an IP66/67 rating, rubberised buttons and a polycarbonate screen protector. The FLOMEC RT14 a fantastic product for almost any flow measurement application in both safe and hazardous areas.
The RT14 Rate Totaliser is the perfect product when a local display is required with the ability to interface with external control and monitoring equipment (PLC, SCADA, DCS).
Control Outputs
An unscaled pulse output serves as an input signal amplifier ideally suited for coil type inputs from turbine or paddle wheel meters. The output can be transmitted over and can be configured for NPN/PNP with wiring connection.
Programming
Simple PIN protected flowchart programming with English prompts guide you through the programming routine greatly reducing the need to refer to the instruction manual.
Features
- Self or external powered, 8-digit LCD total & 8-digit cumulative totaliser, 5-digit rate display
- Robust IP66/67-NEMA4X universal mount glass reinforced nylon enclosure with rubberized buttons and polycarbonate lens
- GRN field & panel mountable housing
- Scaled pulse, 4-20mA (Loop Powered) Output, multi-point linearization of flow input or frequency inputs
- Flow alarm for high, low or high/low
- PIN protected programming
- Simple flowchart touch key programming
- Reverse polarity protection
- Non-volatile memory, Long battery life
