Atten Single Channel Intelligent Unleaded Soldering Station
Atten USB Soldering Iron
Atten Multi-Functional Desoldering Station GT-5150 STATION
MPN: GT-5150 STATION
|
RPI: 3259604
or 4 interest-free payments of
$25,000.00
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
6972142390193 |
| MPN |
GT-5150 STATION |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |

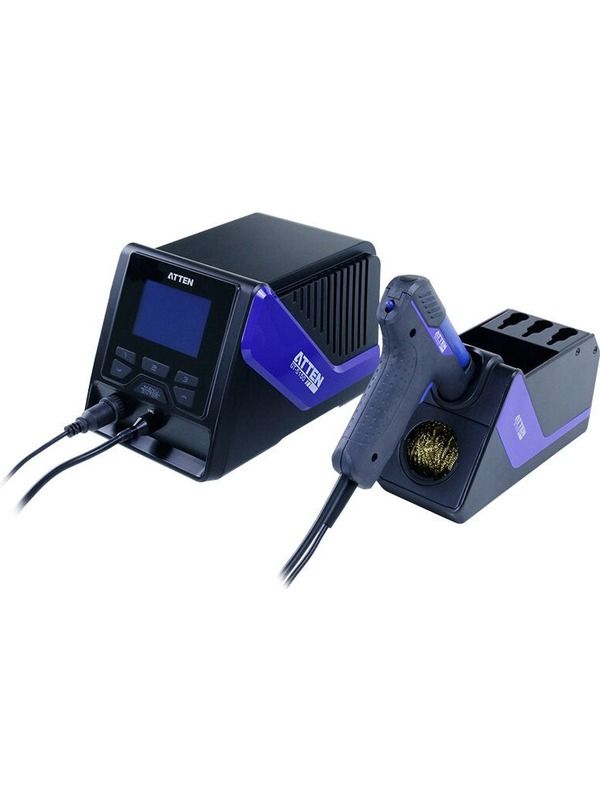

Atten Multi-Functional Desoldering Station
Overview
Single channel high-end intelligent unleaded suction soldering station.
Compatible with various type of soldering tools, one machine serves several purposes.
Built- in vacuum suction pump.
Max power is 150W.
Big silicone buttons operate comfortable and reliable.
All kinds of parameter data and information in the form of graphics display with its large LCD screen.
Can automatically recognize the soldering tools and upload the corresponding parameters.
Provide 3 sets shortcut temperature to simplify operations.
Features
Easy temperature setting
Quick call short-cut temperature
User-friendly menu enables easier system setting
PC Software Control System (can be used under win XP, win 7)
Software interface included 4 functions modules
Includes
GT-5150 Main Unit: 1 Unit
Manual : 1 PCS
AC cord: 1 PCS
3.5mm grounding-type receptacle: 1 PCS
GT-X150 Desoldering gun : 1 Set
GT-S03 Iron Stand: 1 PC
Optional Accessories
Handles
GT-Y050
GT-Y130
GT-Y150
GT-N100
GT-X150
Tip Range
T50 Series (for GT-Y050)
T130 Series (for GT-Y130)
T150 Series (for GT-Y150)
T100 Series (for GT-N100)
T151 Series (for GT-X150)
Resources
Specifications
| Model | GT-5150 |
| Rated working voltage | 110VAC/230VAC +-10% 50Hz/60Hz optional |
| Rated Power | 150W |
| Temperature range | 300-480C |
| Temperature stability | +-2C/+-4F |
| Vacuum pressure | -600mmHg |
| Temperature adjustment | Long press to adjust 10 unit at a time; Short press to adjust 1 unit at a time. |
| Standby time | 0-120min (default 0) |
| Dormancy time | 0-120 minutes (default 0) |
| Shortcut temperature | 3 groups shortcut temperature |
| Temperature calibration range | +-50C/+-90F |
| Password protection setting | Available |
| Support | Ceiling/Lower limit temperature setting |
| Working conditions | Temperature 0-40C, relative humidity
|
