Auto Meter Racing instrument Display Color LCD Config"cl Shift & Alarm Li

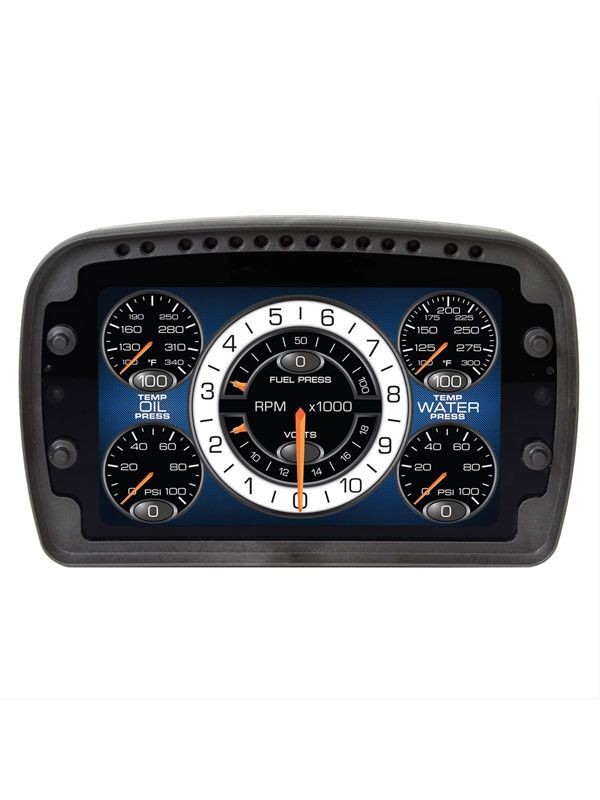

AutoMeter competition LCD displays are the next evolution of driver communication and data acquisition. Designed for the harshest environments, their carbon composite housings are IP65 sealed against water and dust intrusion and will easily withstand 20 g of continuous vibration and 50 g of shock. A 7 in. LCD panel ensures easy visibility under all circumstances with a retina level pixel density, unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is fully configurable. Each system will accommodate four programmable data bus channels (two CAN and two serial) in conjunction with a nearly limitless amount of discrete analog sensors and its integrated 3-axis accelerometer. Data collection at up to 1 kHz and the internal memory allows for practically infinite recording time. User-definable warnings take advantage of super bright, multicolor LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information.
Display Features:
1000 nit brightness for unmatched daytime and nighttime visibility with 800 x 480 resolution
Onboard photo sensor for automatic brightness control
8.3 in. wide x 5.2 in. high x 1.4 in. deep
Single 37-way autosport (AS) wiring loom connector for ease of installation and removal
12 analog inputs for discrete sensors; ideal for parameters not supported on the vehicle communication bus or ECU
Expansion modules available separately for additional input
DataPro Designer PC setup utility
Fully user-configurable from display via integrated 4-button interface for at-track changes
Optional external switch set can be mounted within driver reach for easy access
16 configurable multi-color LED indicator lights can be programmed for a wide variety of alarm and gear change indication functions
Initial release supports six layers or screens selected from user-configurable templates (screens/instrument cluster designs/layouts), additional configurability supporting team selected graphics, parameter/instrument type and location, and size available with future firmware and PC software releases
Perfectly rendered virtual analog needles, value display bands, digital value indicators for vehicle parameters and configurable full-color text warning messages
Patented predictive lap-timing display for driver and vehicle development
Inputs:
Four pulse/digital or analog inputs
Eight analog inputs (0-5 V or 0-12 V)
Five external switches/control outputs
Internal 3-axis accelerometer +/-6 g
Internal battery voltage
GPS mapping and lap timing
Communications:
Two configurable RS232 ports
Configurable CAN BUS ports
Ethernet port
USB port
Data Recording:
4 GB onboard datalogging memory
Record up to 128 channels
Sample rates up to 500 Hz (select inputs 1000 Hz)
Includes powerful DataPro analysis software
Environmental:
Operating temperature range: 20 degrees F to 180 degrees F
Humidity range: 0 to 100 percent relative humidity
Miscellaneous:
Boot time/reset time to data screen: 2 seconds
Boot time for full graphic application: 8 seconds
Weight: 1.5 lbs.
