Benchvent Dual Speed Fume Cabinet (Hood ID 960 x 660x 620) (930H-C) BV930H-C

Benchvent Dual Speed Fume Cabinet (Hood ID 960 x 660x 620) (930H-C)

** ADDITIONAL CHARGESMAY APPLY FOR AIR FREIGHT & BULKY ITEMS **

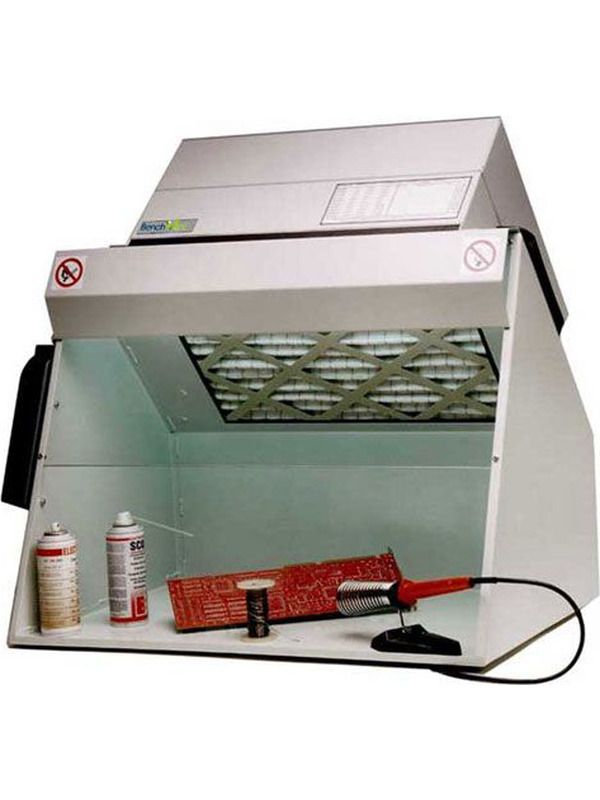

BenchVent Dual Speed Recirculating Fume Cabinet BV930H-C (Hood ID 960 x 660x 620)Description

The BV930H-C is large dual-speed hood mounted filtration cabinet with high-efficiency carbon filter. It is designed to offer local exhaust ventilation for large projects, and immediate operator protection when external venting isnt possible.

Additionally, the BV930H-C also provides operators with a safe workstation for handling potential harmful chemicals. All processes is done within the hood enclosure in front of the the intake filter area.

For artwork applications, the enclosure can accommodate a standard A1 drawing boards, which will sit at an angle so the unit captures the overspray efficiently, keeping the surrounding working area clean.

This unit is suitable for use in dental & medical laboratories, pharmaceutical labs, school science laboratories, design and research laboratories and electronic manufacturing.

** ADDITIONAL CHARGESMAY APPLY FOR AIR FREIGHT & BULKY ITEMS **

BenchVent Dual Speed Recirculating Fume Cabinet BV930H-C (Hood ID 960 x 660x 620)Applications

The BV930H-C is suitable to filter fumes, vapours and particulates from:

• Spray Adhesives

• Conformal coatings (thin polymer film usually used to coat circuit boards)

• Paints

• Monomers

• Resin

• Sealants

• Solders

• Light Grinding

• Organic Solvents

• Cleaners

• Other hazardous powders and particulates

BenchVent Dual Speed Recirculating Fume Cabinet BV930H-C (Hood ID 960 x 660x 620)Key Features

• Quiet in operation

• Can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.

• Steel construction finished in dove grey fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting

• particulate (intake) filter

• bonded carbon filter

• 2 x centrifugal blowers

• External rotor motor (brushless, UL, VDE and CSA approved)

• Sealed electricals, downstream of filters

BenchVent Dual Speed Recirculating Fume Cabinet BV930H-C (Hood ID 960 x 660x 620)Includes

• Filter unit with 2x Centrifugal fans

• Hood Enclosure

• Hood Light

• Poly-carbonate hinged front panel

• 1 x Particulate filter

• 1 x Activated Carbon Filter

• Power Lead

• Data/Warranty Booklet

** ADDITIONAL CHARGESMAY APPLY FOR AIR FREIGHT & BULKY ITEMS **

BenchVent Dual Speed Recirculating Fume Cabinet BV930H-C (Hood ID 960 x 660x 620)Dimensions

• 960 x 660 x 620 (WxHxD) (internal)

• 960 x 740 x 720 (WxHxD) (overall)

Data Sheet

BenchVent Dual Speed Recirculating Fume Cabinet BV930H-C (Hood ID 960 x 660x 620)Specifications

Weight

Dimensions

Description

Air Volume at Free Air

Ave. Air Velocity at Filter Face

Ave. Air Velocity at Hood Face

Fan Motor Spec

Filters
