Bernstein ESD Contact Bracelet with Cables + Crocodile Clip 4 Pcs 9-350

Bernstein ESD Contact Bracelet with Cables + Crocodile Clip 4 Pcs

• Bracelet and cable EPA suitable. For working in electrostatically protected areas (ESD workplace / ESD protection zone).

• Meets the safety requirements for wrist grounding according to BGI 818 (DIN EN 61340-5-1)

• adjustable, anti-allergic, washable, (woven silver-plated synthetic fibres)

• Bracelet length 200 mm

• press buttons 3-4 mm for wrist strap and 10 mm for ground contact connection

• highly elastic 2.4 m long spiral cable + 1.8 m ground cable 1 megaohm safety resistor with 2 x10 mm push buttons

• cable: 2 x 1 megohm safety resistor, bracelet: Resistance inside 10^3-10^5, outside 10^7-10^9

• additionally insulated crocodile clip for grounding with clamp connection

• color dark blue

• weight 60 g

Wrist grounding, as a safe method to derive electrostatic charge from people, consists of an adjustable wrist strap with woven silver-plated synthetic fibers (close skin contact necessary) and a spiral cable which connects the wristband with the earthing point via press buttons, electrically dissipative. The coiled cable has a safety resistance of 1 MOhm on each connection side and is approved for workplaces with a rated voltage up to 250 VAC. To ensure adequate insulation, the bracelet may only be stored in a dry place.

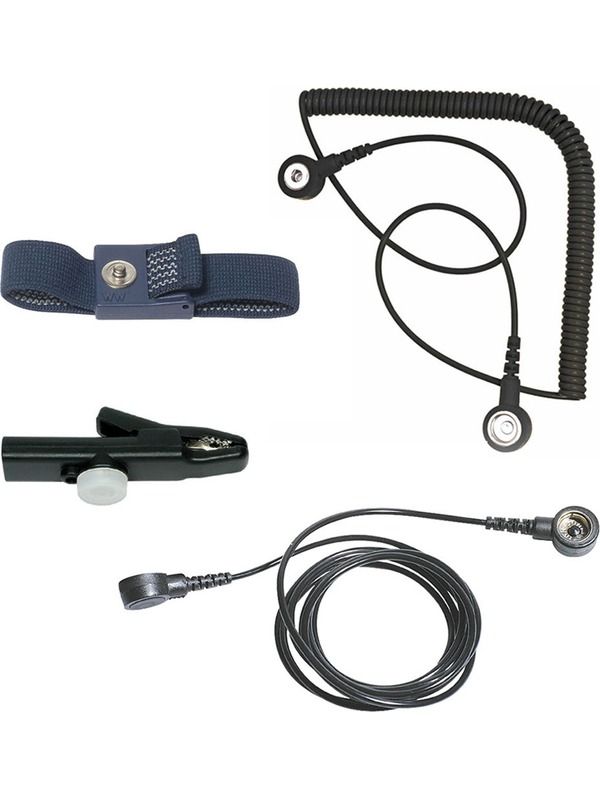

ESD contact bracelet consists of:

• 9-342-1 ESD contact bracelet blue

• 9-342-2 ESD spiral cord for bracelet 70 - 200 cm black

• 9-343-1 ESD grounding cable 1 MOhm, 1800 mm 2 press-studs 10/10 mm

• 9-353 Crocodile clip, insulated banana plug with 10 mm push button
