Botron Continuous Monitor
Botron Continuous Monitor Overview

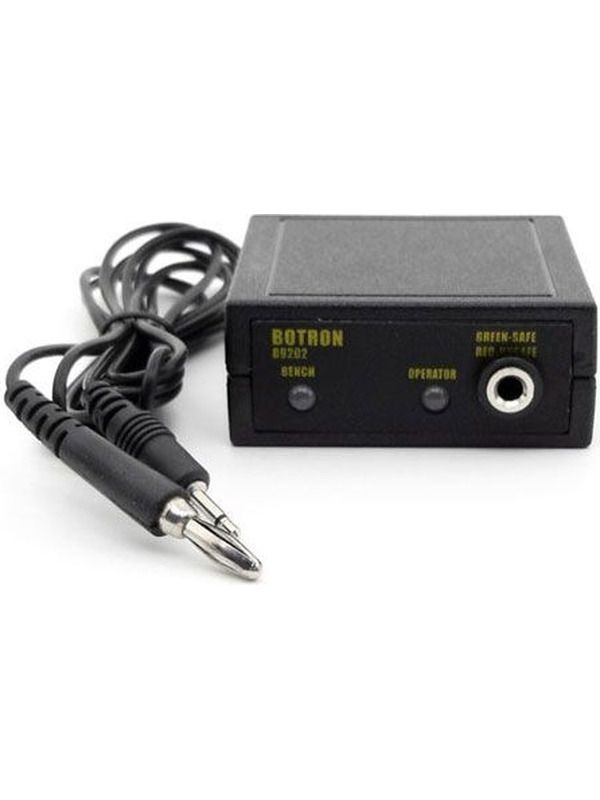

The Botron B9202 is designed to monitor resistance of both the work surface and the operator. It comes with a built in audible alarm and LED, triggering either when either the operator or work surface falls out of spec, becomes disconnected, or ground is lost. It is a fixed resistor system and is go no go, there is no calibration needed. A full time monitoring system is necessary to reduce latency on the assembly line.
Botron Continuous MonitorFeatures
- Pass/Fail LED Alarm
- Banana Jack Input
- Ground Wire
Botron Continuous MonitorApplications
To be used in work environments in accordance with S20.20 standard for monitoring resistance from worker to ground. It is recommended to use constant monitoring in work environments handling components that are more susceptible to ESD damage.
| Botron Continuous MonitorSpecifications | |
| Operating Parameters | |
| Mat | Pass = >0 to < 6.75M Fail = >6.75M +/- 10% |
| Operator | Pass 8.5Meg +/- 10% |
| Size | 0.88" x 1.75" x 1.25" |
| Mounting | Screws on |
| Safe Condition | 1 Meg Ohm |
| Fault Condition | 6.5 Meg Ohm |
| Power | 230V |
| Visual Alarm | Power pack green (safe), red (fault) |
| Operation | Active when plugged in |
Botron Continuous MonitorResources
Data Sheet
