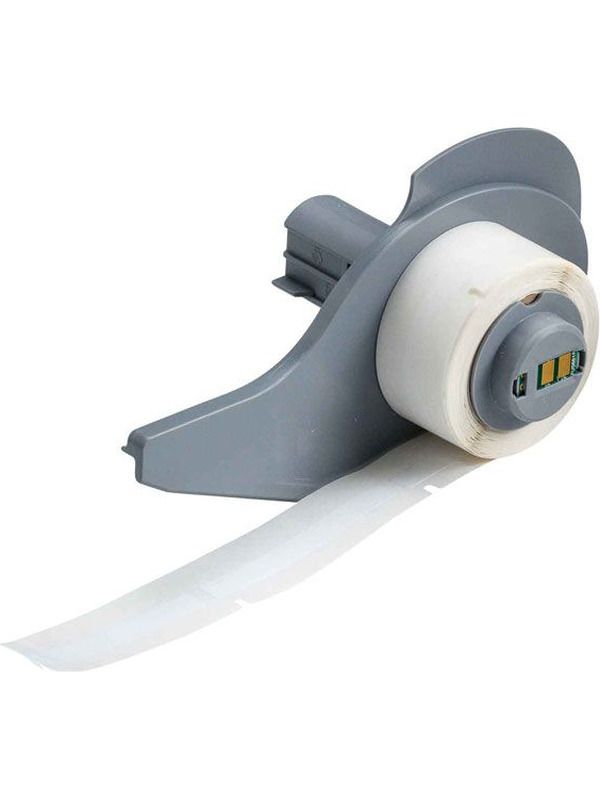

Brady B-423 Glossy Polyester General Industrial Labels 50.80mm x 6.35mm WhiteOverview
Labels for the BMP71 Label Printer.
Brady B-423 Glossy Polyester General Industrial Labels 50.80mm x 6.35mm White Specifications
Adhesive
Permanent Acrylic
Adhesive (Y/N)
Yes
After Process
Yes, this material will work with this application
Approval/Compliance
UL Recognised; CSA Accepted; AGA Approved; Halogen Free (DIN VDE 0472/part 815)
Article No.
114784
Board Application
Through Hole - Top
Brady Material No.
B-423
Brand
WorkHorse
Colour
White
Description
Labels for the BMP71 Label Printer. Please Note: This material is UL, CSA & AGA approved with its respective ribbon. See the Recommended Ribbon Series for the appropriate ribbon to use.
Environment
Freezer; Autoclave; Hot Water Bath (100C)
Finish
Gloss
Laboratory Application
Well Plates
Material Type
Polyester
Max. Characters per Line
41
Max. Lines of Text
2
Max. Service Temp. C
110 C
Min. Service Temp. C
-70 C
Order Reference
M71-2-423
Printer Compatibility
BMP71
QTY. per Row
1
REACH Candidate List Date
15 January 2019
REACH SVHC Status
Part does not contain an SVHC
Ribbon Series
M71-R6000HF
RoHS Compliance Status
Compliant with Directive 2011/65/EU and 2015/863
Shape
Rectangle
Size - Height (mm)
50.80 mm
Size - Width (mm)
6.35 mm
Surface
For smooth surfaces
Surface Mount Technology SMT
No, this material does not work with this application
Thickness (mm)
0.076 mm
Through Hole Technology
Top: Yes. In extreme high temperatures, testing of this material is recommended, Bottom: No
