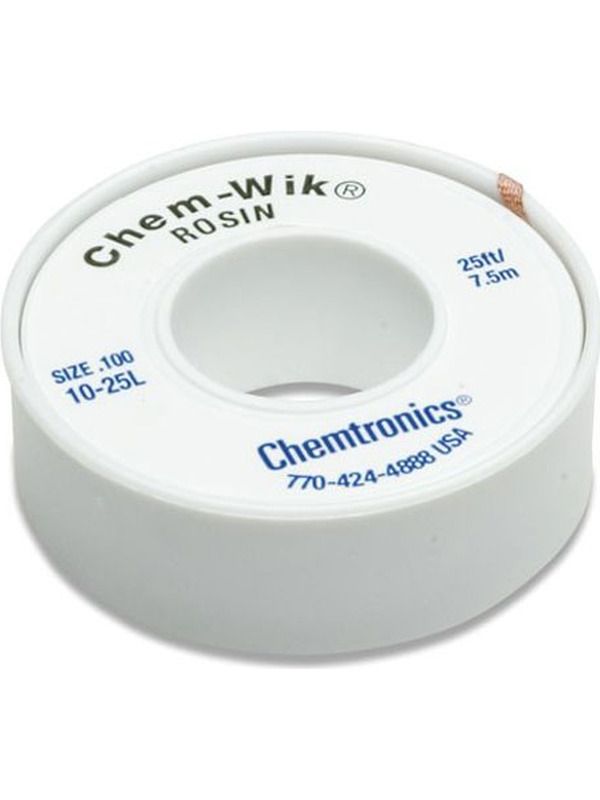

Chemtronics Chem-Wik Desolder Braid, , 2.5mm-25ft 10-25L

Chemtronics Chem-Wik Desolder Braid, , 2.5mm-25ft

Chem-Wik Desolder Braid, 10-25L, 2.5mm-25ft Overview

Chem-Wik Desoldering Braid ensures fast and safe desoldering with ultra-pure, oxygen free copper braid that quickly and completely removes solder from circuit boards and components. Its fast wicking action protects components from harmful heat damage.

All wick is sealed in nitrogen-purged packaged to avoid corrosion and loss of performance from moisture and oxygen.

Chem-Wik Desolder Braid, 10-25L, 2.5mm-25ft Features & Benefits

• Chem-Wik Rosin 5' spools packaged in ESD-safe static dissipative bobbins

• Requires little or no post solder cleaning, no corrosive residues

• Optimized weave design for faster wicking and heat transfer

• Halide free

• Coated with ultra high purity, noncorrosive Type R rosin flux

• Quickly and thoroughly removes solder

• Fast wicking action protects components from harmful heat damage

Chem-Wik Desolder Braid, 10-25L, 2.5mm-25ft Applications

• Chem-Wik Rosin desoldering braid safely removes solder from:

• Thru-hole Components

• Surface Mount Device Pads

• BGA Pads

• Micro Circuits

• Terminals

• Lugs and Posts

• Identification Script

Chem-Wik Desolder Braid, 10-25L, 2.5mm-25ft Specifications

• MIL-F-14256F Type R

• NASA STD-8739.3 Soldered Electrical Connections

• ANSI/IPC J STD-004, Type ROL0

• DOD-STD-883E, Method 2022

• #4 blue, 0.100"/2.5mm width

  25 feet/7.6m on spool

Chem-Wik Desolder Braid, 10-25L, 2.5mm-25ftResources

Technical Data Sheet
