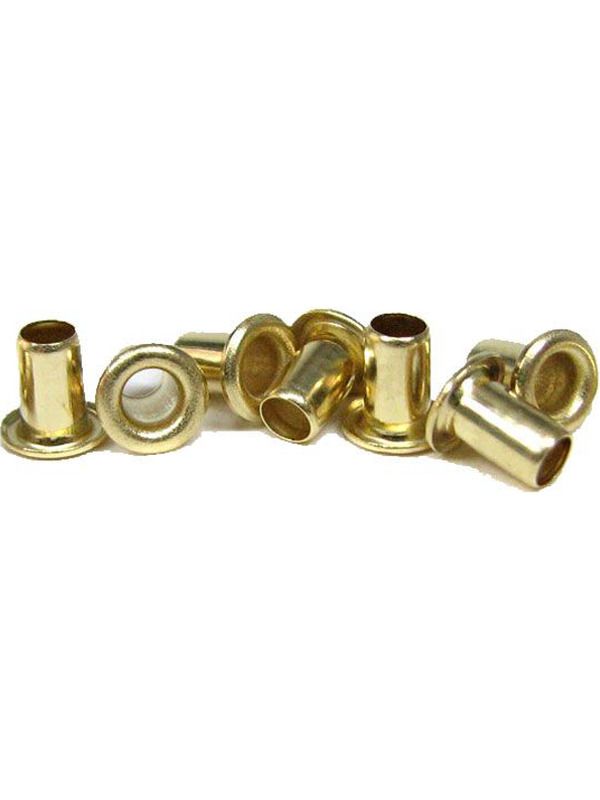

Circuit Medic Brass Eyelets ID .030"x.040" LUF .093" FD .060" Pkg/25 (115730625)
CircuitMedic Eyelets ID .030" OD .040" LUF .093" FD .060" Pkg/25Overview
Eyelets are brass or copper, electroplated with tin unless otherwise specified.
CircuitMedic Eyelets ID .030" OD .040" LUF .093" FD .060" Pkg/25Specifications
|
Part Number |
Flange |
Metal |
ID |
OD |
LUF |
FD |
|
115-7306-25 |
Flat |
Brass |
.030" |
.040" |
.093" |
.060" |
Note: All dimensions are plus or minus .003"
Eyelet Selection Criteria
|
ID - Inside Diameter |
.003" - .020" greater than the component lead diameter. |
|
OD - Outside Diameter |
The clearance hole in the circuit board should be .001" - .005" greater than the outside diameter. |
|
LUF - Length Under Flange |
The length of the flange should be .020" - .035" greater than the thickness of the circuit board. |
|
FD - Flange Diameter |
The flange diameter should be small enough to prevent interference with adjacent pads or circuits. |
