Command Heavy Duty CCD Box Camera IR Lens Adjustable Bracket Mount
The Command Parking Systems range of heavy duty reversing systems offers versatility with a selection of robust multi volt screens and high quality CMOS and CCD infra-red cameras at affordable prices.
All of the Command Heavy Duty systems come with 4 pin aviation style connectors for a strong, reliable and direct connection to create a user friendly plug and play system that can be upgraded, modified or even removed and re-fitted with ease.
Connections carry both video signal and power to be directly connected to Command heavy duty/commercial monitors.
If connecting to a Passenger Vehicle range screen, a 91ADKIT adaptor will be required.
The lead from the camera also comes complete with grommet already fitted for a professional installation.
The range of Command Heavy Duty cameras run high quality CMOS and sharp CCD image processors with automatic light sensitive infra-red LED's for superior image quality even in low or no light situations.
Command Heavy Duty Monitors are designed for applications that demand more.
Built to be more versatile and harder wearing with upgrades to product quality and protection.
Pedestal or bracket mounting, auto backlight illumination, touch button operation and full function remote control are among these additional excellent features available.
If connecting cameras or devices that use an RCA style connection the 91ADKIT2 adaptor will be required to convert the screens inputs from a 4 pin aviation connection to a STANDARD RCA video connector and power jack.
One 91ADKIT2 included with every 91CMDS7S at no charge. The use of an extension cable (depending on how far away the camera is from the screen) may be required and 5m, 10m or 20m are available separately. New trailer installation cable kits are available separately in single and dual inputs with 4 pin connectors.
The Command 91CMDC220 heavy duty ccd 120-degree camera provides assistance detecting obstacles whilst reversing your vehicle.
It has an audible alarm and an optional visual display with many models.
It increases safety levels when children are playing near the vehicle and also may prevent collisions with unseen objects behind your vehicle.
The camera also features powder-coated aluminum, 18 x infra-red leds and adjustable camera angle.

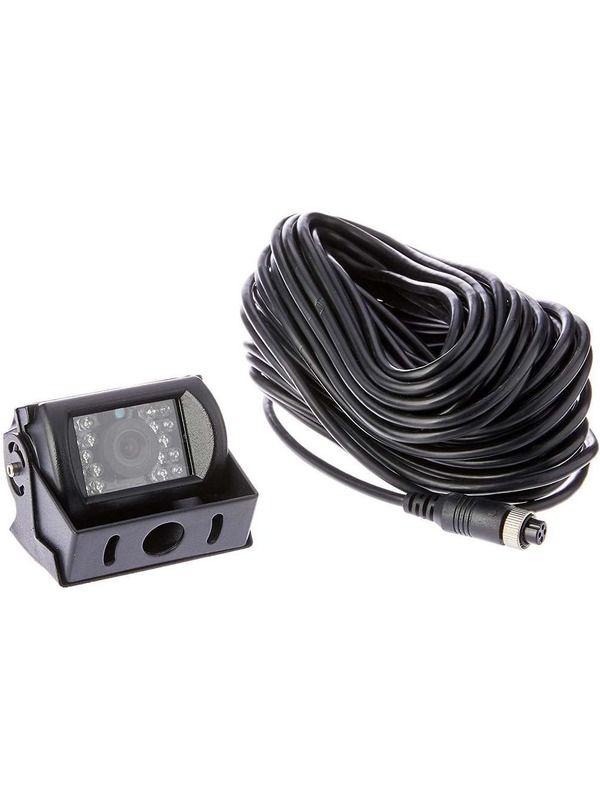

It includes ccd camera, mounting bracket, sun visor, 20 meter extension cable and Allen key.
- 0.25-inch sharp ccd image sensor
- 420 tvl resolution with 537 x 505 pixel rate
- Mirrored image, 120 degree viewing angle
- Provides ip67 ingress protection
- Heavy duty bracket mounting type
