Command Parking Systems 7 Inches Quad Heavy Duty Monitor CMDS7HDQ
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Command Parking Systems 7 Inches Quad Heavy Duty Monitor
The Command 2nd Gen Heavy Duty 7 Quad View Monitor has been designed for a range of applications where multiple cameras are required and more than one image needs to be seen at any given time.
4 video inputs, all audio capable, are included with a video trigger wires for each input to automatically display the required image without the need to press a button.
Multi-volt - 12V-32V.
Screen Size: 7 inch (diagonal)
Signal Type: PAL/NTSC (auto-switch)
Resolution: 800 x 480
Inputs: 4 x video/audio in
Connector Type: Large 4 pin
Power Supply: 9-32v
Reverse Trigger: Trigger for all inputs
Mounting Type: U-support bracket swivel mount available separately
Sun Shield: Yes - removable
Speaker: Yes
Menu features: On/Off, Brightness, contrast, colour, HUE, reset, volume, full screen rotation, auto brightness, background, guide line, language, trigger timing, image rotation sleep timing.
Dimensions: 180mm (W) x 125mm (H) x 40mm (D)
Additional Features: Multi volt, split screen options, auto brightness control, trigger delay options, image rotation, grid line overlay.

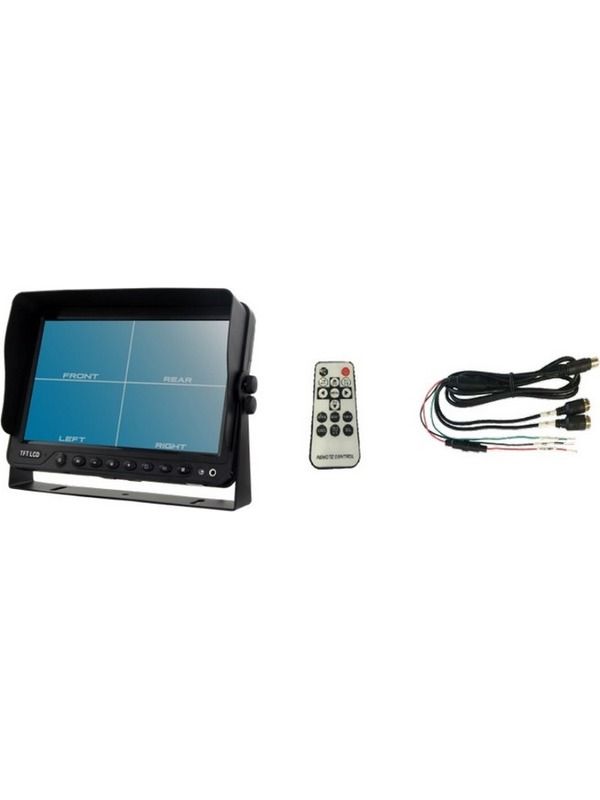

Includes: 7 inch screen, u-support bracket, mounting bolts, power/AV harness, removable sun shield, remote control
