COMP Cams 273-360 Hydraulic Cam 280H 230/230@50 .480/480" 110
COMP Cams 273-360 Hydraulic Cam 305H 253/253@50 .525/525" 110

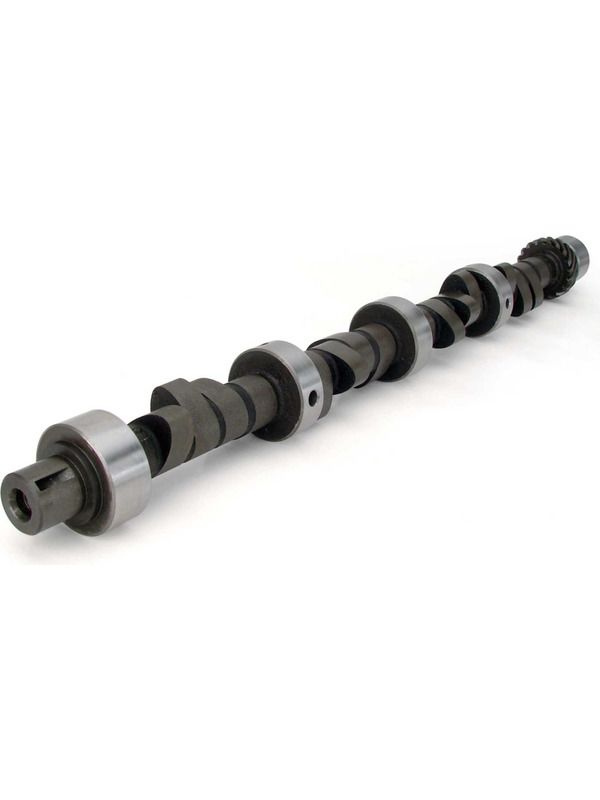

COMP Cams 273-360 Hydraulic Cam 292H 244/244@50 .501/501" 110 20-243-4
MPN: 20-243-4
|
RPI: 184558
or 4 interest-free payments of
$152.14
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584520405 |
| MPN |
20-243-4 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Advertised Exhaust Duration |
292 |
| Advertised Intake Duration |
292 |
| Assembly Lubricant Included |
Yes |
| Basic Operating RPM Range |
3,000-6500 |
| Cam and Lifter Kit Upgrade |
CL20-243-4 |
| Cam Type |
Hydraulic Flat Tappet |
| Camshaft Gear Attachment |
1-Bolt |
| Camshaft Material |
Cast Iron |
| Camshaft Series |
Magnum |
| Engine Family |
Chrysler 273-360 c.i. 8 Cylinder (1964-2002) |
| Exhaust Duration at .050 inch Lift |
244 |
| Exhaust Valve Lift |
0.501 in |
| Grind Number |
292H |
| Intake Duration at .050 Inch Lift |
244 |
| Intake Valve Lift |
0.501 in |
| K-Kit Upgrade |
K20-243-4 |
| Lifter Type |
Hydraulic Flat Tappet |
| Lifters Included |
No |
| Lobe Separation |
110 |
| SK-Kit Upgrade |
SK20-243-4 |
| Usage |
Street/Strip |
| Valve Springs Required |
Yes |
HYDRAULIC - Seriousstreet/strip effort. 9.5:1 to10.5:1 compression.Aftermarket manifold, headersand 3.91 gear. 3000-3500stall in automatic cars.
Rpm operating range3000-6500
Durationadvertised Inlet 292,Exh 292
Durationadvertised @.050" Inlet244, Exh 244
Valve lift with 1.5 rockerInlet .501", Exh .501"
Lobe separation angle110
