COMP Cams 302W Hydraulic Camshaft Xe262H 218/224@50 .493/500" 110
COMP Cams 302W Hydraulic Camshaft Xe274H 230/236@50 .520/523" 110

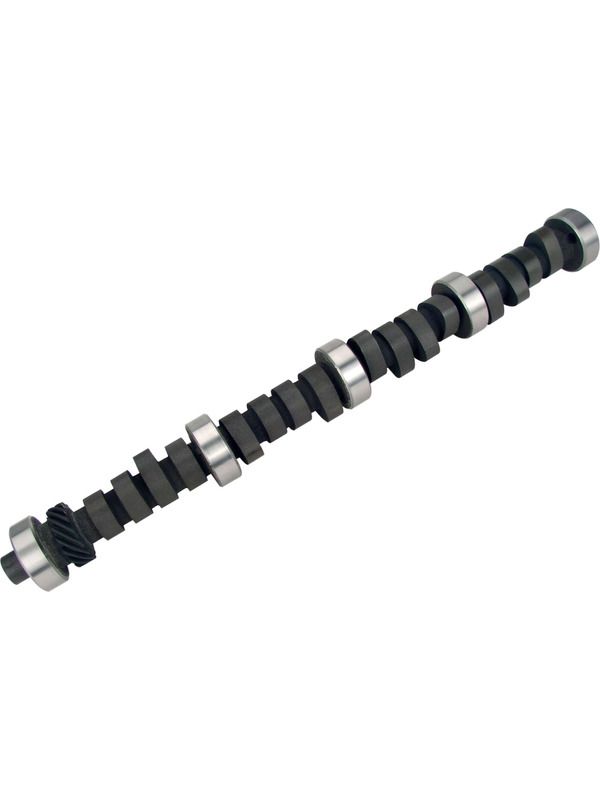

COMP Cams 302W Hydraulic Camshaft Xe268H 224/230@50 .509/512" 110 31-242-3
MPN: 31-242-3
|
RPI: 184633
or 4 interest-free payments of
$131.24
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584030911 |
| MPN |
31-242-3 |
| Handling Time |
1-3 Business Days |
| Return Policy |
30 Days Return |
| Warranty |
Manufacturer Warranty |
| Cam Style |
Hydraulic flat tappet |
| Camshaft Use |
Street/Strip |
| Basic Operating RPM Range |
1,600-5,800 |
| Intake Duration at 050 inch Lift |
224 |
| Exhaust Duration at 050 inch Lift |
230 |
| Duration at 050 inch Lift |
224 int./230 exh. |
| Advertised Intake Duration |
268 |
| Advertised Exhaust Duration |
280 |
| Advertised Duration |
268 int./280 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.509 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.512 in. |
| Valve Lift with Factory Rocker Arm Ratio |
0.509 int./0.512 exh. |
| Lobe Separation (degrees) |
110 |
| Remanufactured |
No |
| Computer-Controlled Compatible |
No |
| Grind Number |
FS XE268H-10 |
| Valve Springs Required |
Yes |
| Quantity |
Sold individually. |
COMP Cams 302W Hydraulic Camshaft Xe268H 224/230@50 .509/512" 110
- Rpm operating range1600 - 5800
- Durationadvertised Inlet 268,Exh 280
- Duration advertised @ .050"Inlet 224, Exh 230
- Valve lift with 1.6rocker Inlet .509", Exh 512"
- Lobe separationangle 110
