COMP Cams 383-440 Hydraulic Cam 270H 224/224@50 .470/470" 110
COMP Cams 383-440 Solid Roller Cam Rx296 263/270@50 .650/651" 108

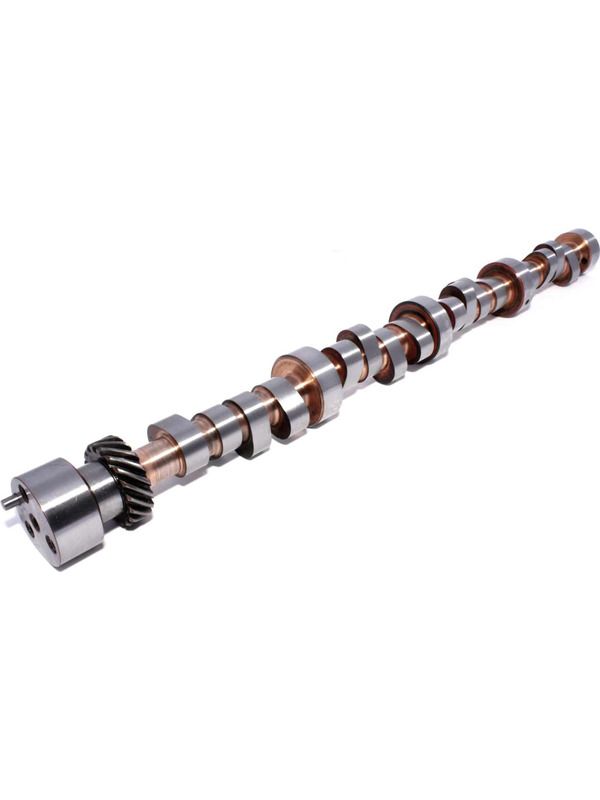

COMP Cams 383-440 Solid Roller Cam Xr280 242/248@50 .570/576" 110 23-701-9
MPN: 23-701-9
|
RPI: 184577
or 4 interest-free payments of
$289.54
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584081852 |
| MPN |
23-701-9 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Advertised Exhaust Duration |
286 |
| Advertised Intake Duration |
280 |
| Assembly Lubricant Included |
No |
| Basic Operating RPM Range |
2,500-6,200 |
| Cam and Lifter Kit Upgrade |
CL23-701-9 |
| Cam Type |
Solid Roller |
| Camshaft Gear Attachment |
3-Bolt |
| Camshaft Material |
Billet Steel |
| Camshaft Series |
Xtreme Energy |
| Engine Family |
Chrysler 383-440 c.i. 8 Cylinder (1959-1980) |
| Exhaust Duration at .050 inch Lift |
248 |
| Exhaust Valve Lift |
0.576 in |
| Grind Number |
XR280R |
| Intake Duration at .050 Inch Lift |
242 |
| Intake Valve Lift |
0.57 in |
| K-Kit Upgrade |
K23-701-9 |
| Lifter Type |
Solid Roller |
| Lifters Included |
No |
| Lobe Separation |
110 |
| SK-Kit Upgrade |
SK23-701-9 |
| Usage |
Street/Performance |
| Valve Springs Required |
Yes |
MECHANICAL ROLLER - 9.5:1with 3000+ stall. Strongmid-range with a lopey idle..
Rpm operating range2500-6200
Durationadvertised Inlet 280,Exh 286
Durationadvertised @.050" Inlet242, Exh 248
Valve lift with 1.5 rockerInlet .570", Exh .576"
Lobe separation angle110
