Comp Cams Camshaft / Lifters / Springs / Timing Set Xtreme 4 x 4 Hy
Comp Cams Camshaft / Lifters / Springs / Timing Set Xtreme Energy H
Comp Cams Camshaft / Lifters / Springs / Timing Set Xtreme Energy H K12-242-2
MPN: K12-242-2
|
RPI: 2268965
or 4 interest-free payments of
$268.22
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584024415 |
| MPN |
K12-242-2 |
| Handling Time |
7-10 Business Days |
| Return Policy |
No Return (Unless Manufacturer Defect) |
| Warranty |
Manufacturer Warranty |
| Cam Style |
Hydraulic flat tappet |
| Basic Operating RPM Range |
1,600-5,800 |
| Camshaft Use |
Street/Strip |
| Intake Duration at 050 inch Lift |
224 |
| Exhaust Duration at 050 inch Lift |
230 |
| Duration at 050 inch Lift |
224 int./230 exh. |
| Advertised Intake Duration |
268 |
| Advertised Exhaust Duration |
280 |
| Advertised Duration |
268 int./280 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.477 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.480 in. |
| Valve Lift with Factory Rocker Arm Ratio |
0.477 int./0.480 exh. |
| Lobe Separation (degrees) |
110 |
| Camshaft Gear Attachment |
3-bolt |
| Grind Number |
CS XE268H-10 |
| Computer-Controlled Compatible |
No |
| Lifters Included |
Yes |
| Lifter Style |
Hydraulic flat tappet |
| Valve Springs Included |
Yes |
| Valve Spring Style |
Standard |
| Outside Diameter of Outer Spring (in.) |
1.254 in. |
| Retainers Included |
Yes |
| Locks Included |
Yes |
| Valve Stem Seals Included |
Yes |
| Timing Chain and Gears Included |
Yes |
| Timing Chain Style |
Double roller |
| Assembly Lubricant Included |
Yes |
| Pushrods Included |
No |
| Rocker Arms Included |
No |
| Gaskets Included |
No |
| Valve Springs Required |
No |
| Quantity |
Sold as a kit. |
Comp Cams Camshaft / Lifters / Springs / Timing Set Xtreme Energy H

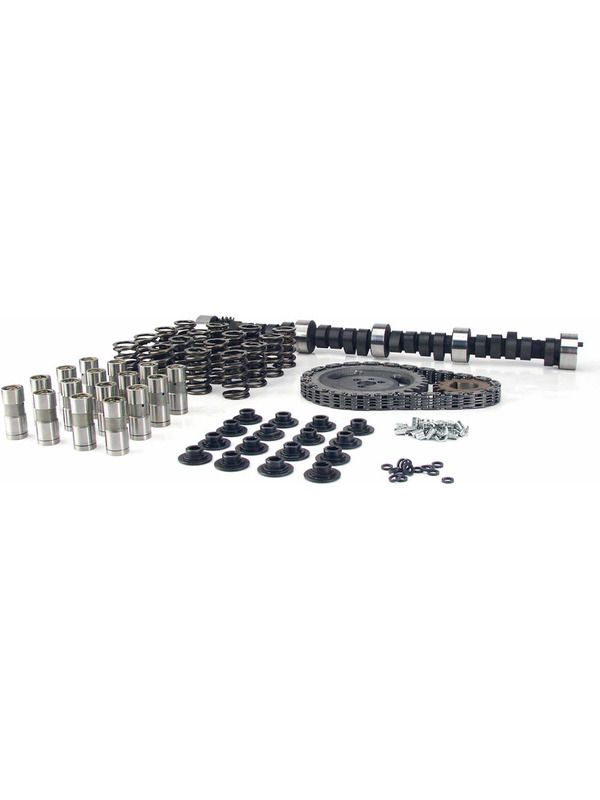

Camshaft / Lifters / Springs / Timing Set - Xtreme Energy - Hydraulic Flat Tappet - Lift 0.477 / 0.480 in - Duration 268 / 280 - 110 LSA - Small Block Chevy - Kit
