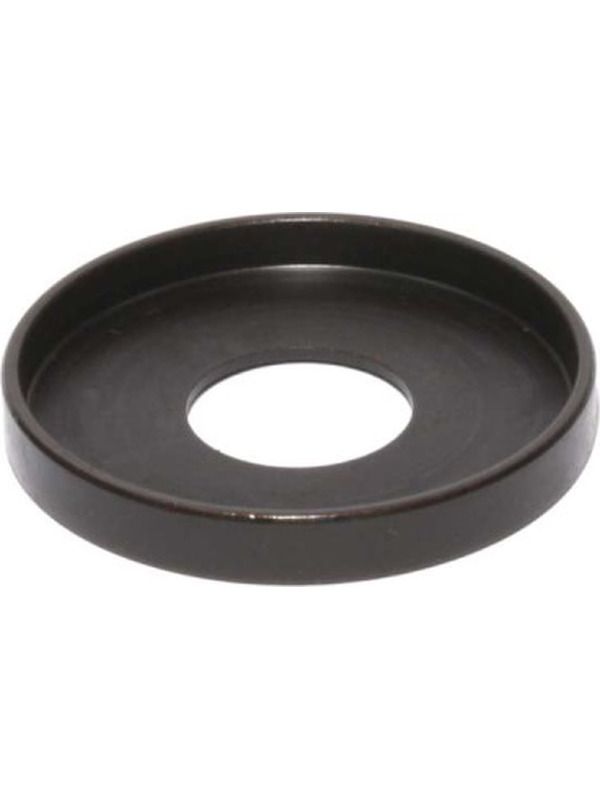

Comp Cams Engine Valve Spring Seat OD Spring Locator 1.455 in. OD .570
Notes: Engine Valve Spring Seat OD Spring Locator 1.455 in. OD .570 in. ID .060 in. Thick
The old standard shims will not hold up to the extreme spring pressures and high RPM in todays race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup.
