COMP Cams Ls Beehive Valve Spring Kit Steel Retainers, .600" Max 26915CS-KIT
MPN: 26915CS-KIT
|
RPI: 184597
or 4 interest-free payments of
$223.70
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Estimate
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584225478
MPN
26915CS-KIT
Handling Time
7-10 Business Days
Return Policy
No Return (Unless Manufacturer Defect)
Warranty
Manufacturer Warranty
Valve Spring Style
Beehive
Number of Springs Per Valve
Single
Maximum Valve Lift (in.)
0.640 in.
Retainers Included
Yes
Retainer Material
Steel
Outside Diameter of Outer Spring (in.)
1.290 in.
Coil Bind Height (in.)
1.085 in.
Damper Spring Included
No
Spring Rate (lbs/in.)
313 lbs./in.
Inside Diameter of Outer Spring (in.)
0.885 in.
Locks Included
Yes
Lock Material
Hardened steel
Lock Groove Quantity
1-groove
Lock Style
7 degree
Valve Stem Seals Included
Yes
Valve Springs Coated
No
Valve Stem Diameter (in.)
0.314 in.
Valve Stem Diameter (mm)
7.97mm
Remanufactured
No
Quantity
Sold as a kit.
Notes
Top of the spring measures 1.055 in. O.D. and 0.650 in. I.D.
COMP Cams Ls Beehive Valve Spring Kit Steel Retainers, .600" Max PERFORMANCESTREET
COMPCams Performance Street ValveSprings provide extrastability and endurance. Theseare the most popular COMPsprings for streetapplications and are usedprimarily by customers withperformance hydraulic flattappet & hydraulic rollersin mind. COMP technicians willmatch the proper spring foreach customers given liftand install heightrequirements

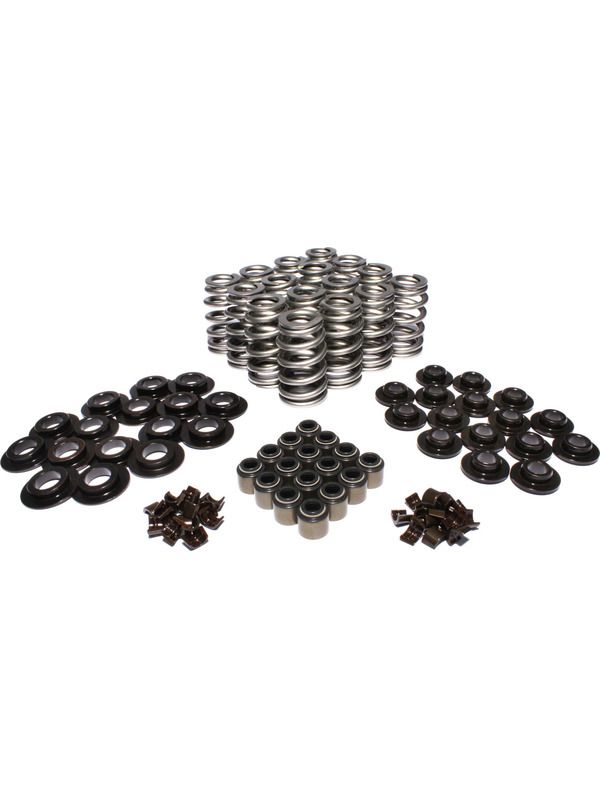

KitContains:
Beehive Springs#26915-16 SteelRetainers#774-16 7 SteelValve Locks#623-16 Valve Seals#511-16 Spring Seats#4705-16 Spring Specifications
Spring O.D: Top1.055" / Bottom 1.290"SpringI.D: Top .650" /Bottom .885"SeatLoad: 105 @ 1.800"OpenLoad: 293 @ 1.200"CoilBind: 1.100"Rate(LBS/In): 313 lbsMaxLift: .600"
