COMP Cams Ls Beehive Valve Spring Kit Tool Steel Retainers .625" 26918TS-KIT
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

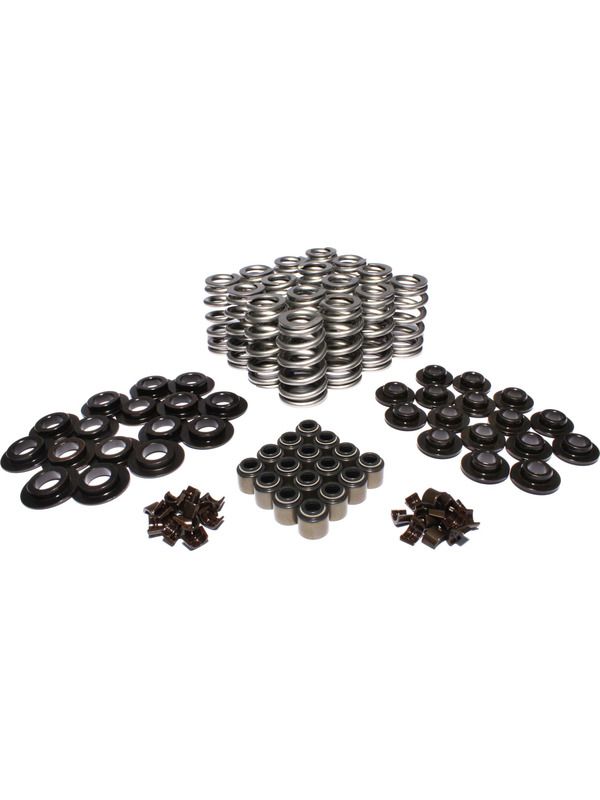

This Beehive Valve SpringKit for LS engines is designedfor hydraulic roller cams andincludes carefully matchedBeehive Springs, retainers,locks, seals and spring seats.With a .625" maximum lift,these Beehive Valve Springsdeliver increased valve trainstability and a much lightervalve train. This is achievedwith less spring pressure forbetter valve control andreduced weight of both thespring and retainer. Theunique Beehive shape handlesvalve train stress moreefficiently to eliminatedamaging harmonics andincreases high RPM horsepowerand durability. Theoval/multi-arc wire shapeplaces the maximum area of thewire at the point of higheststress to handle valve trainstress more efficiently andallow better heat dissipationfor longerlife.
KitContains:
- Beehive Springs#26918-16
- Tool SteelRetainers#1772-16
- 7 SteelValve Locks#623-16
- Valve Seals#511-16
- Spring Seats#4705-16
Spring Specifications
- SpringO.D: Top 1.075" / Bottom1.310"
- Spring I.D: Top.650" / Bottom.885"
- Seat Load: 125 @1.800"
- Open Load: 367@ 1.150"
- Coil Bind:1.100"
- Rate (LBS/In):372 lbs
- Max Lift:.625"
