COMP Cams Ls1 Hyd Roller Cam 285Ltb Hr15 235/231@50 .621/617" 115
COMP Cams Ls1 Hyd Roller Cam 283Thr9 227/241@50 .563/546" 109

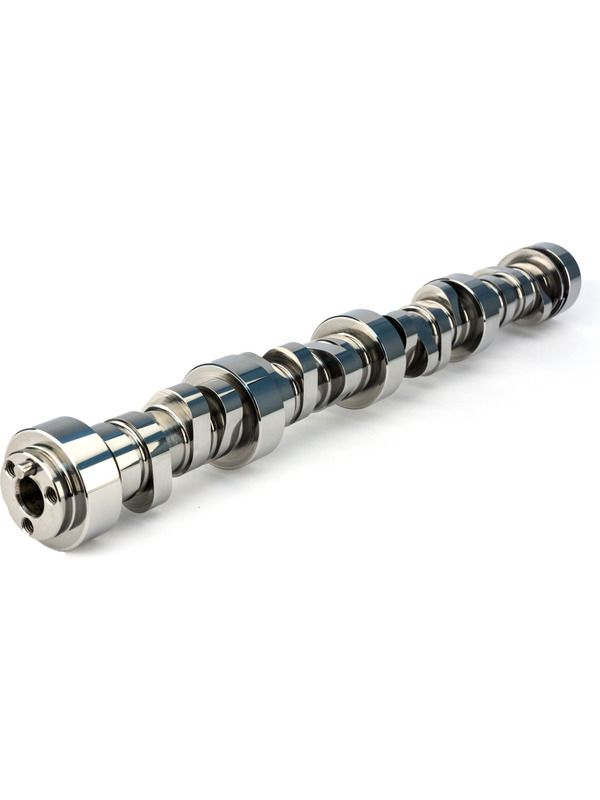

COMP Cams Ls1 Hyd Roller Cam Tpx254Hr-16 202/212@50 .507/500" 116 54-530-11
MPN: 54-530-11
|
RPI: 184881
or 4 interest-free payments of
$168.29
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584127574 |
| MPN |
54-530-11 |
| Handling Time |
1-3 Business Days |
| Return Policy |
30 Days Return |
| Warranty |
Manufacturer Warranty |
| Advertised Exhaust Duration |
264 |
| Advertised Intake Duration |
254 |
| Assembly Lubricant Included |
No |
| Basic Operating RPM Range |
1,000-6,000 |
| Cam Type |
Hydraulic Roller |
| Camshaft Gear Attachment |
3-Bolt |
| Camshaft Material |
Billet Steel |
| Camshaft Series |
Tri-Power Xtreme |
| Engine Family |
GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift |
212 |
| Exhaust Valve Lift |
0.5 in |
| Grind Number |
TPX 254HR-16 |
| Intake Duration at .050 Inch Lift |
202 |
| Intake Valve Lift |
0.507 in |
| Lifter Type |
Hydraulic Roller |
| Lifters Included |
No |
| Lobe Separation |
116 |
| Valve Springs Required |
Yes |
COMP Cams Ls1 Hyd Roller Cam Tpx254Hr-16 202/212@50 .507/500" 116
- Rpm operating range1000 - 6000
- Durationadvertised Inlet 254,Exh 264
- Duration advertised @ .050"Inlet 202, Exh 212
- Valve lift with 1.7rocker Inlet .507", Exh .500"
- Lobe separationangle 116
