COMP Cams Ls1 Hyd Roller Cam Xr273Hr 220/224@50 .530/534" 112
COMP Cams Ls1 Hyd Roller Cam Xr275Hr 222/224@50 .566/568" 112

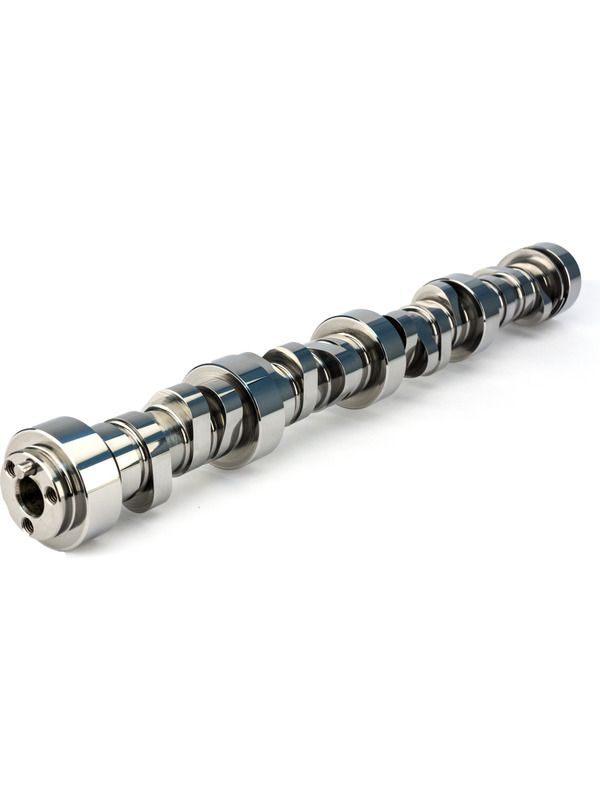

COMP Cams Ls1 Hyd Roller Cam Xr277Hr 224/228@50 .534/537" 112 54-418-11
MPN: 54-418-11
|
RPI: 184868
or 4 interest-free payments of
$188.04
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584068228 |
| MPN |
54-418-11 |
| Handling Time |
1-3 Business Days |
| Return Policy |
30 Days Return |
| Warranty |
Manufacturer Warranty |
| Advertised Exhaust Duration |
281 |
| Advertised Intake Duration |
277 |
| Assembly Lubricant Included |
No |
| Basic Operating RPM Range |
2,000-6,800 |
| Cam and Lifter Kit Upgrade |
CL54-418-11 |
| Cam Type |
Hydraulic Roller |
| Camshaft Gear Attachment |
3-Bolt |
| Camshaft Material |
Billet Steel |
| Camshaft Series |
XFI RPM |
| Engine Family |
GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift |
228 |
| Exhaust Valve Lift |
0.537 in |
| Grind Number |
XR277HR |
| Intake Duration at .050 Inch Lift |
224 |
| Intake Valve Lift |
0.534 in |
| K-Kit Upgrade |
K54-418-11 |
| Lifter Type |
Hydraulic Roller |
| Lifters Included |
No |
| Lobe Separation |
112 |
| Usage |
Street/Performance |
| Valve Springs Required |
Yes |
COMP Cams Ls1 Hyd Roller Cam Xr277Hr 224/228@50 .534/537" 112
- Rpm operating range2000 - 6800
- Durationadvertised Inlet 277,Exh 281
- Duration advertised @ .050"Inlet 224, Exh 228
- Valve lift with 1.7rocker Inlet .534", Exh .537"
- Lobe separationangle 112
