COMP Cams Sbc Mechanical Cam 300F-6 270/278@50 .580/577" 106
COMP Cams Sbc Hydraulic Camshaft 279Th7 227/241@50 .479/465" 107

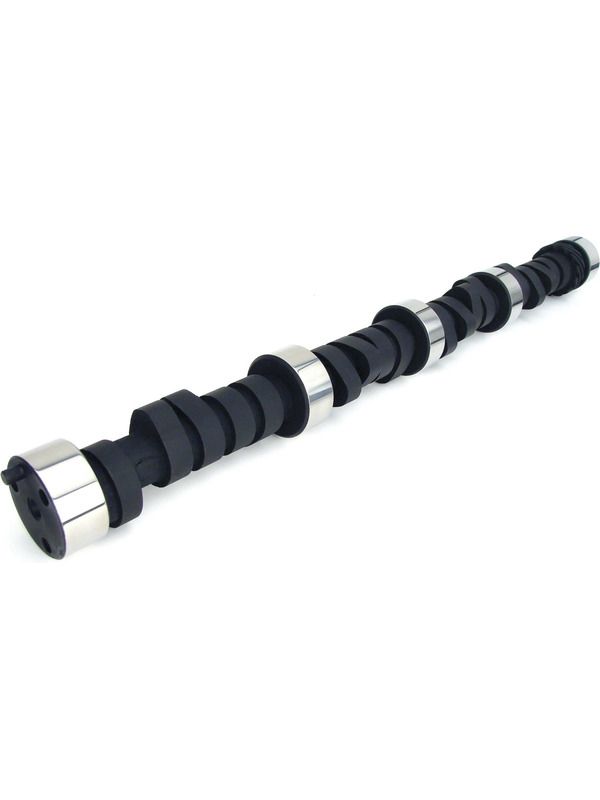

COMP Cams Sbc Hydraulic Camshaft Nx274H 230/244@50 .487/501" 113 12-564-4
MPN: 12-564-4
|
RPI: 184436
or 4 interest-free payments of
$135.48
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Estimate
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days *
* You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
Brand
GTIN
036584023852
MPN
12-564-4
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Cam Style
Hydraulic flat tappet
Camshaft Use
Street/Strip
Basic Operating RPM Range
2,400-6,500
Intake Duration at 050 inch Lift
230
Exhaust Duration at 050 inch Lift
244
Duration at 050 inch Lift
230 int./244 exh.
Advertised Intake Duration
274
Advertised Exhaust Duration
292
Advertised Duration
274 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio
0.487 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio
0.501 in.
Valve Lift with Factory Rocker Arm Ratio
0.487 int./0.501 exh.
Lobe Separation (degrees)
113
Remanufactured
No
Computer-Controlled Compatible
No
Grind Number
CS NX274H-13
Valve Springs Required
Yes
Quantity
Sold individually.
COMP Cams Sbc Hydraulic Camshaft Nx274H 230/244@50 .487/501" 113 Xtreme Energy Cams aredesigned to maximize torque,acceleration and throttleresponse while providingexcellent high RPM horsepower.A faster intake valve openingincreases engine vacuum andenhances throttle response.Special intake closing rampsclose the valve sooner,providing more cylinderpressure and torque withoutresulting in excessive valvetrain noise. Faster rampsachieve maximum velocitysooner, increasing the areaunder the lift curve andproviding maximum horsepower.Smoother exhaust designs allowfor a more effective purge ofspent gasses from thecombustion chamber to furtherincreasehorsepower.
Camshaftsuits street/stripapplication, 125+ hp kit ormedium blower, 2500+ stall,rough idle
RPMoperating range 2400 -6500 Durationadvertised Inlet 274, Exh292 Durationadvertised @ .050" Inlet230, Exh244 Valve liftwith 1.5 rocker Inlet.487", Exh.501" Lobeseparation angle113
Item Specific Information
Brand
GTIN
036584023852
MPN
12-564-4
Handling Time
1-3 Business Days
Return Policy
30 Days Return
Warranty
Manufacturer Warranty
Cam Style
Hydraulic flat tappet
Camshaft Use
Street/Strip
Basic Operating RPM Range
2,400-6,500
Intake Duration at 050 inch Lift
230
Exhaust Duration at 050 inch Lift
244
Duration at 050 inch Lift
230 int./244 exh.
Advertised Intake Duration
274
Advertised Exhaust Duration
292
Advertised Duration
274 int./292 exh.
Intake Valve Lift with Factory Rocker Arm Ratio
0.487 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio
0.501 in.
Valve Lift with Factory Rocker Arm Ratio
0.487 int./0.501 exh.
Lobe Separation (degrees)
113
Remanufactured
No
Computer-Controlled Compatible
No
Grind Number
CS NX274H-13
Valve Springs Required
Yes
Quantity
Sold individually.
