COMP Cams Sbc Mechanical Cam Xs256S 218/224@50 .465/477" 110
COMP Cams Sbc Mechanical Cam Xs274S 236/242@50 .501/510" 110

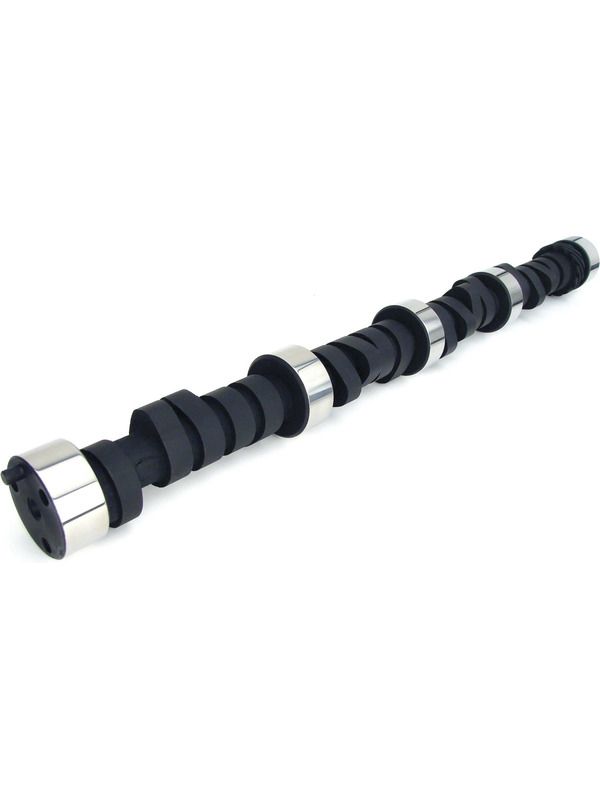

COMP Cams Sbc Mechanical Cam Xs268S 230/236@50 .488/501" 110 12-676-4
MPN: 12-676-4
|
RPI: 184445
or 4 interest-free payments of
$143.38
Trackable Shipping
Australia Wide
Handling Time
1-3 Business Days Handling Time
(Prior to Dispatch)
Return Policy
30 Days Return
Type in your postcode or suburb to get an estimate on postage cost.
Save more when you buy more with combined postage
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 1-3 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click
here
| Brand |
|
| GTIN |
036584070245 |
| MPN |
12-676-4 |
| Handling Time |
1-3 Business Days |
| Return Policy |
30 Days Return |
| Warranty |
Manufacturer Warranty |
| Cam Style |
Solid flat tappet |
| Camshaft Use |
Street/Strip |
| Basic Operating RPM Range |
1,600-6,000 |
| Intake Duration at 050 inch Lift |
230 |
| Exhaust Duration at 050 inch Lift |
236 |
| Duration at 050 inch Lift |
230 int./236 exh. |
| Advertised Intake Duration |
268 |
| Advertised Exhaust Duration |
274 |
| Advertised Duration |
268 int./274 exh. |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.488 in. |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.501 in. |
| Valve Lift with Factory Rocker Arm Ratio |
0.488 int./0.501 exh. |
| Lobe Separation (degrees) |
110 |
| Intake Valve Lash |
0.016 in. |
| Exhaust Valve Lash |
0.016 in. |
| Remanufactured |
No |
| Computer-Controlled Compatible |
No |
| Grind Number |
CS XS268S-10 |
| Valve Springs Required |
Yes |
| Quantity |
Sold individually. |
COMP Cams Sbc Mechanical Cam Xs268S 230/236@50 .488/501" 110
- valve lash Inlet.016", Exh .016"
- RPMoperating range 1600 - 6000
- Duration advertisedInlet 268, Exh 274
- Duration advertised@ .050" Inlet 230, Exh236
- Valve liftwith 1.5 rocker Inlet .488",Exh .501"
- Lobeseparation angle 110
