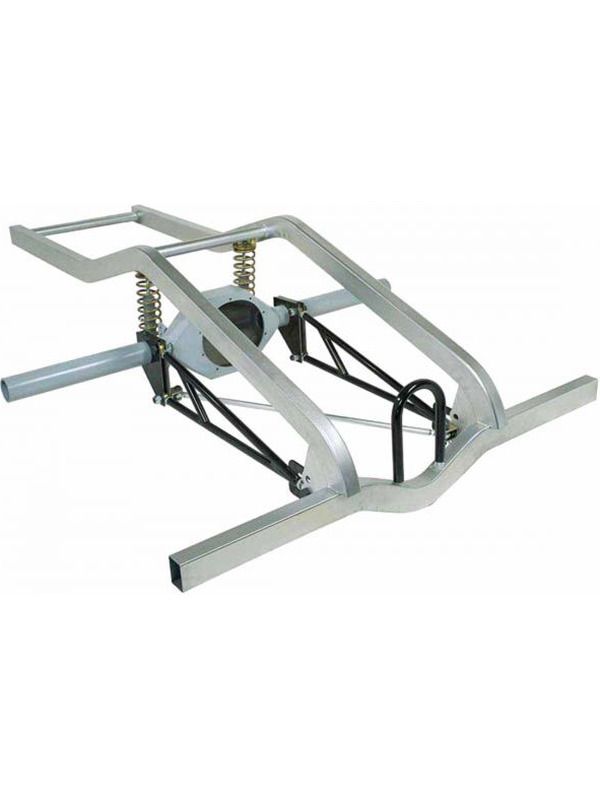

Competition Engineering Frame Kit Suspension Steel Ladderbar 24in. Width
Notes: Frame Kit Suspension Steel Ladderbar 24in. Width 12-Way Adj. Shock 125lb Spring Rate Kit
Ladder Bar Frame Kit, 24 Width, 3-Way Adjustable Shock, Progressive Rate Spring for 125 lbs overall weight. Frame Kit comes with the following items: Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires 2 x 3 Crossmember - Mandrel formed for uniform provide; 3.5 drop center makes it adaptable to virtually any chassis design; 60 wide Diagonal Link - 3/4 O.D. DOM steel with 1/2 Spherical Rod Ends for easy, in-chassis adjustment Driveshaft Loop - 1-1/8 O.D. mandrel formed Round Tube contains driveshaft during U-joint failure Shock Crossmember - Tubular design provides high strength with light weight Upper & Lower Shock Mounts - Provides 6 of ride height adjustment Competition Ladder Bars, Part No. C2006 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop 3-Way Adjustable Shocks, Part No. C2051 - 3-Way Adjustable Shocks with lower shock mounts that have 6 of adjustments in increments Springs - 2.5 I.D. x 12 long, premium-grade chrome silicone steel, powder coated for durability. Progressive Rate Springs for a vehicle with an overall weight range of 2,901-3,900 lbs.
