Competition Engineering Framekit Ladder Link 26 In Width Coil-Over Shock C2619
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Notes: Framekit Ladder Link 26 In Width Coil-Over Shock

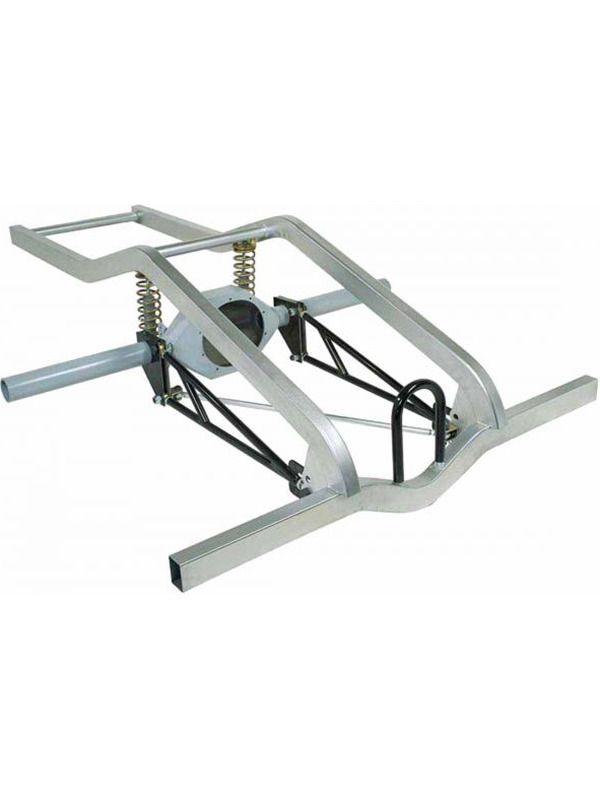

Ladder Link Frame Kit, 26 Width, 12-Way Adj. Coil-Over Shock, Progressive Rate Spring for 2,901 lbs to 3,900 lbs overall weight. Frame Kit comes with the following items: Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires 2 x 3 Crossmember - Mandrel formed for uniform provide; 3.5 drop center makes it adaptable to virtually any chassis design; 60 wide Diagonal Link - 3/4 O.D. DOM steel with 1/2 Spherical Rod Ends for easy, in-chassis adjustment Driveshaft Loop - 1-1/8 O.D. mandrel formed Round Tube contains driveshaft during U-joint failure Shock Crossmember - Tubular design provides high strength with light weight Upper & Lower Shock Mounts - Provides 6 of ride height adjustment Magnum Series Double Adjustable Ladder Bars, Part No. C2008 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop 12-Way Adjustable Coil-Over Shocks, Part No. C2770 - Externally adjustable with CNC machined billet Aluminium threaded body that allows the included spring seats to be threaded up or down for preload and ride height, shocks also have 1 wide top/bottom bearings Springs - 2.5 I.D. x 12 long, premium-grade chrome silicone steel, powder coated for durability. Progressive Rate Springs for a vehicle with an overall weight range of 2,901-3,900 lbs.
