Competition Engineering Rear Frame Suspension Kit Ladder Link Steel Weld C2622
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Competition Engineering Rear Frame Suspension Kit Ladder Link Steel Weld
Notes: Rear Frame Suspension Kit Ladder Link Steel Welded 26in. Width 100 lb. Springs Coilover Shocks Kit

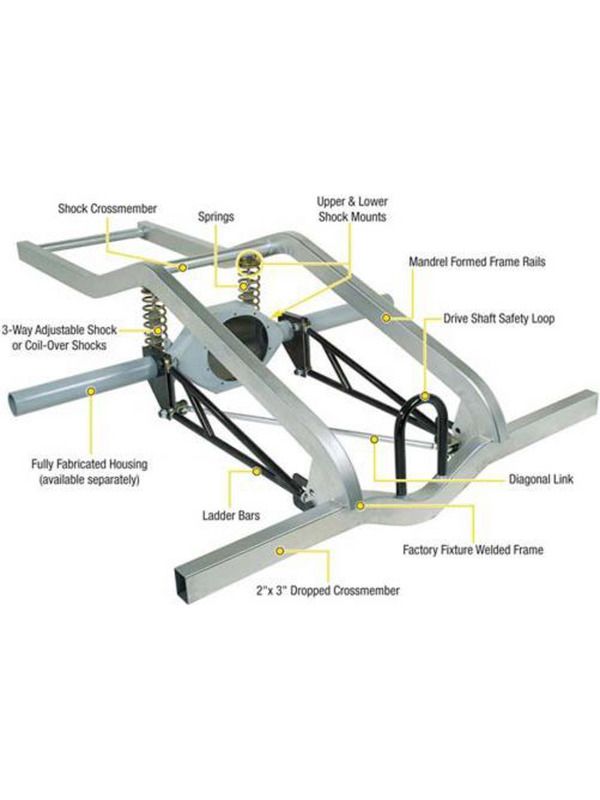

Ladder Link Frame Kit, 26 Width, 3-Way Adjustable Shock, 100 lb Spring Rate. Frame Kit comes with the following items: Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires 2 x 3 Crossmember - Mandrel formed for uniform provide; 3.5 drop center makes it adaptable to virtually any chassis design; 60 wide Diagonal Link - 3/4 O.D. DOM steel with 1/2 Spherical Rod Ends for easy, in-chassis adjustment Driveshaft Loop - 1-1/8 O.D. mandrel formed Round Tube contains driveshaft during U-joint failure Shock Crossmember - Tubular design provides high strength with light weight Upper & Lower Shock Mounts - Provides 6 of ride height adjustment Magnum Series Double Adjustable Ladder Bars, Part No. C2008 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop 3-Way Adjustable Shocks, Part No. C2051 - 3-Way Adjustable Shocks with lower shock mounts that have 6 of adjustments in increments Springs - Matched to your specific rear vehicle weight. 2.5 I.D. x 12 long, premium-grade chrome silicone steel, powder coated for durability
