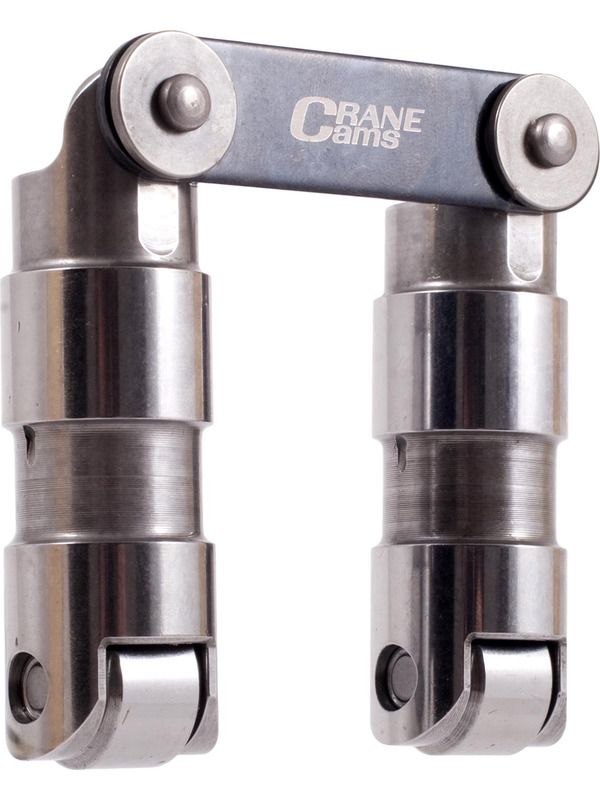

Crane Cams Lifters Hydraulic Roller AMC 290-401 Set of 2 86532-2

Notes: Lifters Hydraulic Roller AMC 290-401 Set of 2

Crane Classic Hydraulic Roller Lifters are offered in two basic designs: those for use with standard factory alignment bars (on engines originally equipped with hydraulic roller lifters); and vertical locking bar drop-in lifters (designed to retrofit engines not factory equipped with hydraulic roller lifters). Our retrofit vertical locking bar lifters are available for non-hydraulic roller equipped engines. They can also be used in many applications to replace factory hydraulic roller lifters and alignment mechanisms. No machining is normally required for the drop-in installation of these lifters, however with differences in block castings and camshaft base circle diameters, care must be taken to ensure that neither the locking bar nor its attaching rivets contact the block casting throughout their normal cycles. If there is any interference, the block can usually be ground to provide the necessary clearance. This should be checked prior to final engine assembly. When used in retrofit applications, special length pushrods ARE required. The retrofit vertical locking bar lifters are machined from 8620 steel billet, heat treated, and assembled at our own facilities. Precision fit plunger assemblies are used to provide proper bleed-down rates, permitting high RPM use in properly set-up engines. The additional inherent strength of the 8620 material also maintains greater stability in the lifter body, permitting more consistent operation in very high spring pressure and high RPM applications, by keeping the plunger to body clearance consistent throughout the operation range. Retrofit lifters also utilize our latest Monel pin and retaining flange assembly to attach the guidebar, providing superior long term durability.
