CVF Racing Serpentine Kit For Chevrolet LSA and LS9 LSA-WRAPTOR-AC
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Notes: Chevrolet LSA and LS9 Serpentine Kit AC Alternator & Power Steering

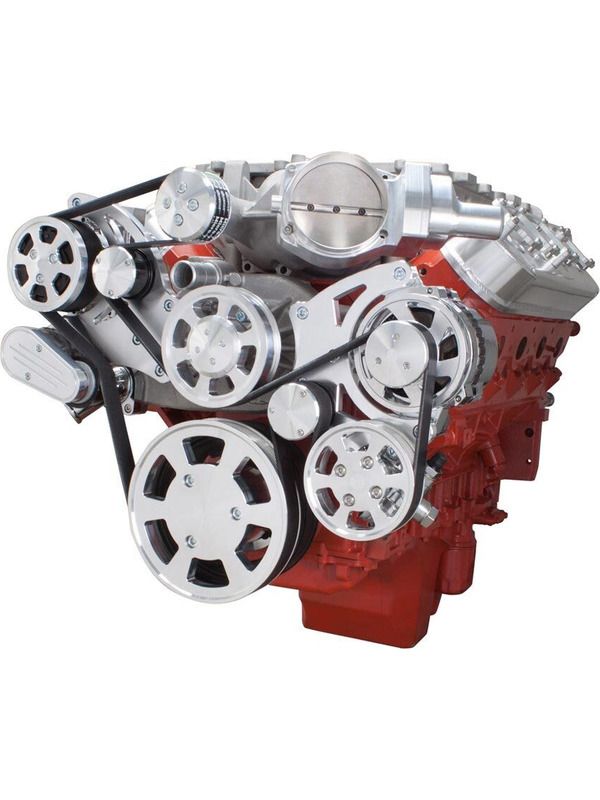

Chevy LSA & LS9 Serpentine Kit for AC & Power Steering Applications All Inclusive Kit! Includes Hub Adapter, Belts, Remote Reservoir and More! The WRAPTOR TM 8 Track Serpentine System for kit Chevy LSA and LS9 engines with Air Conditioning, Power Steering and Alternator. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Mounts GM Type II Power Steering pump low on driver side and puts a Sanden Peanut style AC Compressor up on the passenger side. Places the alternator on the driver's side above the power steering pump. Uses special LS water pump with provision for bolt on water pump pulley. Kit Includes: High Flow Aluminum Water Pump GM Type II Power Steering Pump 140 Amp, 1-Wire CS130 Alternator Sanden Style Peanut Compressor with 8 Rib Clutch Polished AC Compressor Fitting Polished Remote Mount Reservoir with Mounting Bracket Gates Premium Green Strip 8 Rib Belt 8 Rib Supercharger Pulley and Cap Press Fit hub for Supercharger Pulley 8 Rib Water Pump Pulley 8 Rib Crank Pulley 8 Rib Alternator Pulley 8 Rib Power Steering Pulley Gates Spring Loaded Idler Pulley Passenger Side Compressor Bracket Driver Side Power Steering / Alternator Bracket Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer) Billet Compressor Clutch Cover Billet alternator fan Fits LS Based Engines with factory supercharger. Designed for the following applications: 2009 - 2015 Cadillac CTS-V 2012 - 2015 Camaro ZL1 LSA Crate Engines or other LS based Engine equipped with factory supercharger. Application Notes: Fits LS Based Engines with factory supercharger. Designed for 2009 - 2015 Cadillac CTS-V, 2012 - 2015 Camaro ZL1, LSA Crate Engines or other LS based Engine equipped with factory supercharger. Power Steering Lines from pump to reservoir not included. Compatible with Hydroboost ($275 option) Standard 3 pulley provides 8.6 PSI boost. Call for aftermarket superchargers. Optional Blower (Tuner) Pulley Kit is available: Part No. LSASCKIT.
