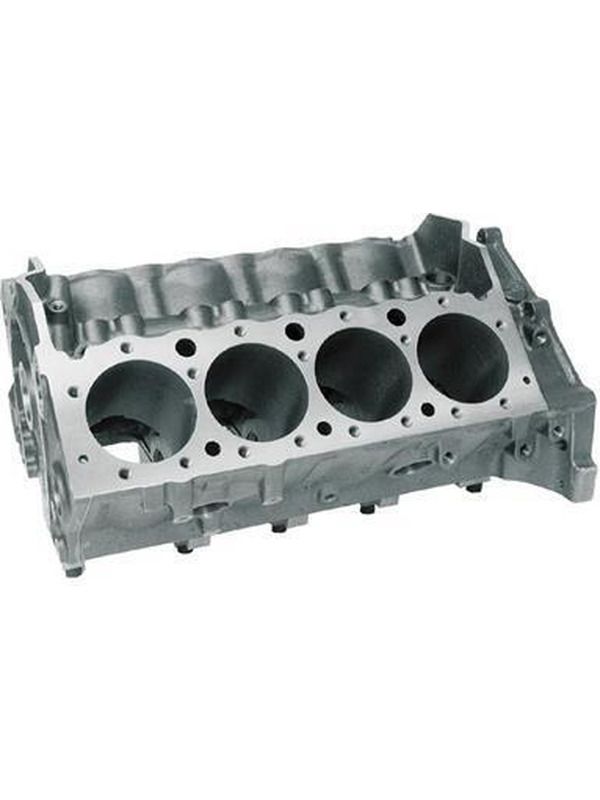

Dart Engine Block Race Series Aluminium 4-Bolt Mains 2-Pice Rear Seal 31711212
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Notes: Engine Block Race Series Aluminium 4-Bolt Mains 2-Pice Rear Seal SBC 9.025 in. Deck 4.125 in. Bore 350 BBC Cam
We created all new tooling and added superior new features like central oil cross-overs and extended cylinder barrels. Deck heights from 8.850in. to 9.500in. are available. DartsAluminum small block is light, strong, and affordable. Features: Deck heights from 8.850in. to 9.500in. provide maximum versatility. Cylinder barrels are extended at the bottom for better piston support with long strokes. Raised camshaft (+.391in.) provides more clearance for stroker cranks and eliminates need for fragile small base circle cams. Option for .434in. raised cam. Siamesed 4.000in. or 4.125in. cylinders can be safely bored to 4.165in.. Ductile Iron sleeves and extra thick walls produce excellent ring seal. Requires use of remote oil filter. No provision for block mounted filters. Relocated oil pan rails are spread .400in. per side (.800in. wider than stock). Oil pan bolt holes are relocated in line with main caps. Big block camshaft bearings allow the use of cams with larger base circle diameter to improve strength and reduce twisting with cam driven pumps. Rear external oil inlets, with crossovers and restrictor provisions located centrally in the valley to simplify plumbing with external pump.
