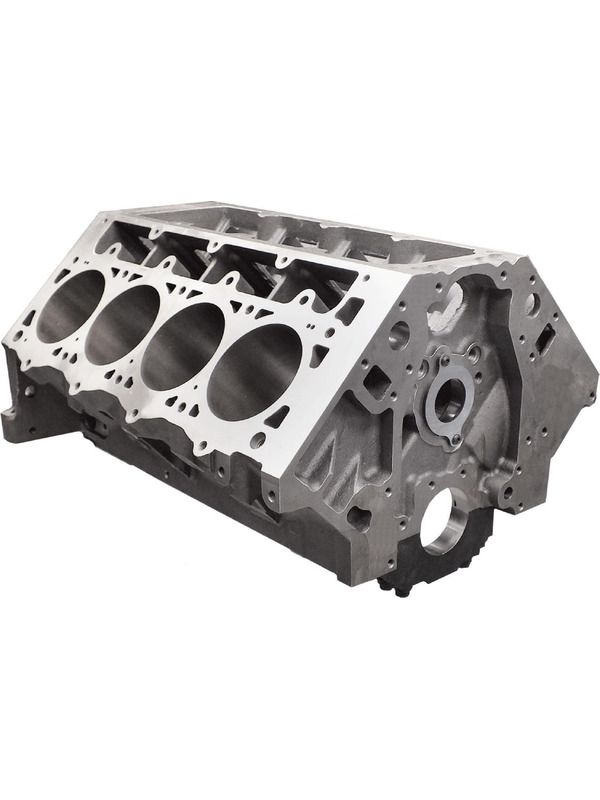

Dart Engine Block SBC LS Next 9.450 4.00LS Main Steel Cap 31837121
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Notes: Engine Block SBC LS Next 9.450 4.00LS Main Steel Cap
By utilizing conventional style main caps and oil pans with LS rotating assemblies and related components, Dart has addressed the windage and oil control problems which result from the factory LS engines separated crankcase bays. Features: Priority main oiling system with two lifter crossovers and restrictor provisions. Siamesed cylinder bores with extra thick walls. Cylinder barrels extended .375 at the bottom. Extra thick decks ensure reliable head gasket seal. Blind head bolt holes available in 7/16 or 1/2. Scalloped water jackets increase flow around cylinders for better cooling. Clearance for 4.100 stroke w/ steel rods. MUST BE clearanced for center counterweighted crankshafts. Splayed outer bolts on middle main bearing caps. LS style motor mounts. Provisions for OE stock roller lifters and cam. Uses stock timing covers and stock rear cover. All OE bolt holes for starter, water pump, etc. Driver or passenger side starter mounts.
