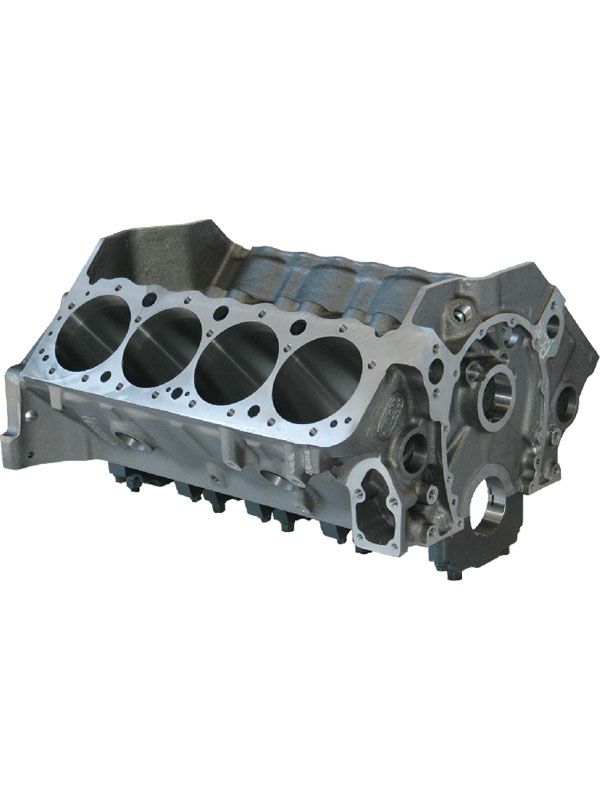

Dart Sbc Chev Iron Eagle Block 4.125 Bore, 400 Mains, Bbc Cam 31122212
MPN: 31122212
|
RPI: 185739
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Race block available withtall deck and with raised camlocation. Provisions for wetor dry sump oiling systems.Maximum effort racingengines.
Iron Eaglesmall blocks are available instandard (9.025") and talldeck (9.325") versions so youcan select the crankshaftstroke and connecting rodlength thats right for yourcombination.
We raisedthe camshaft and spread theoil pan rails to provide extraclearance for stroker cranks.The versatile Iron Eagle blockis the perfect starting pointfor a big cubic inch smallblockproject.
- Standard9.025" and tall deck 9.325"versions allow greaterversatility.
- Raisedcamshaft .391" (4.912"camshaft-to-crankshaftcenterlines) provides moreclearance for stroker cranksand eliminates need forfragile small base circlecams. Option for .434 raisedcam alsoavailable.
- Relocatedoil pan rails are spread .400"per side (.800" wider thanstock) to increase crank/rodclearance and reduce windagelosses.
- Requires useof remote oil filter. Noprovision for block mountedfilters.
- Oil pan boltholes are relocated in linewith main caps to eliminateinterference with rotatingassembly.
- Big blockcamshaft bearings allow theuse of cams with larger basecircle diameter to improvestrength and reduce twistingwith cam-driven pumps (smallblock cam tunnelavailable).
- Dualstarter mounts allow starterto be mounted on either sideof block for chassis and oilpan clearance.
- Front& rear external oilinlets, crossovers andrestrictor provisions tosimplify plumbing withexternal pump.
- Partskit included (PN32000011).
