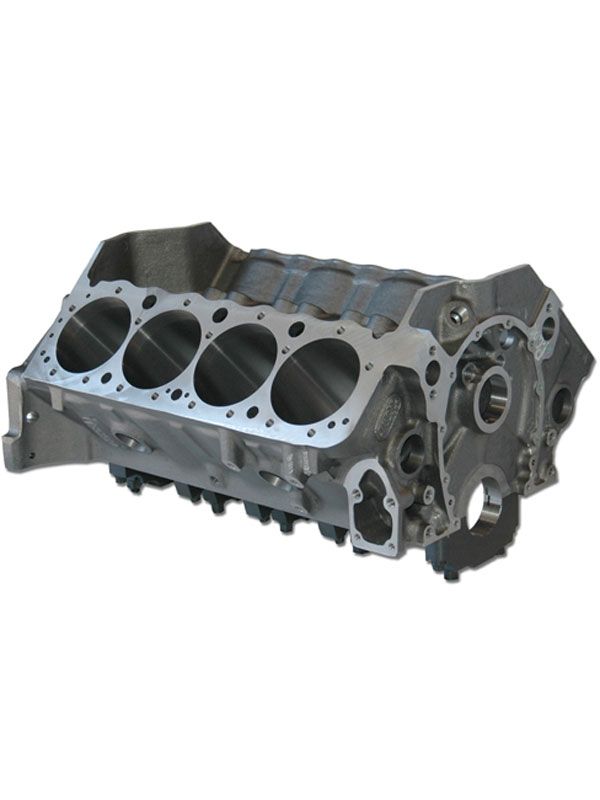

Dart Sbc Iron Eagle Block 4.125 350Mains 9.025Deck Raised Cam 31121211
MPN: 31121211
|
RPI: 185738
Trackable Shipping
Australia Wide
Handling Time
7-10 Business Days Handling Time
(Prior to Dispatch)
(Prior to Dispatch)
Return Policy
No Return (Unless Manufacturer Defect)
Type in your postcode or suburb to get an estimate on postage cost.
Click & Collect (no postage cost)
Unit 1/25 Bearing Road, Seven Hills, NSW, 2147
Ready-to-pickup: 7-10 Business Days*
*You'll receive a notification when your order is ready for pickup. For store details and opening hours, click here
Iron Eagle small blocksare available in standard(9.025") and tall deck(9.325") versions so youcan select the crankshaftstroke and connecting rodlength that's right for yourcombination. Dart raised thecamshaft and spread the oilpan rails to provide extraclearance for stroker cranks.The versatile Iron Eagleblock is the perfect startingpoint for a big inch smallblock project - you can builda 455ci small block withDart!
Features:- standard 9.025" andtall deck 9.325"versions allow for greaterversatility.
- Raisedcamshaft .391"(4.912" camshaft tocrankshaft centerlines)provides more clearance forstroker cranks and eliminatesneed for fragile small basecircle cams. Option for .434raised cam also available.
- Relocated oil panrails are spread .400"per side (.800" widerthan stock) to increasecrank/rod clearance andreduce windage losses.
- Siamesed cylinders:Standard 4.000" or4.125" cylinder can besafely bored to 4.185".Extra thick walls preventcracking and produceexcellent ring seal.
- Oil pan bolt holes arerelocated in line with maincaps to eliminateinterference with rotatingassembly.
- Mainbearing bores are availablefor 350 (2.45") and 400(2.65") bearings allowengine builders to maximizecrankshaft strength andminimize friction.
- 4bolt billet steel main capshave splayed outer boltsminimize bearing boredistortion.
- Dualstarter mounts allow starterto be mounted on either sideof block for chassis and oilpan clearance.
- Frontand rear external oil inlets,crossover and restrictorprovisions to simplifyplumbing with external pump.
- Scalloped outerwater jacket walls improvecoolant flow around thecylinder barrels to equalizetemperatures.
- Coatedcam bearings, freeze plugsincluded.
