Davies Craig Electric Fan High Power Thermatic 12V 10in Dia 1000 CFM

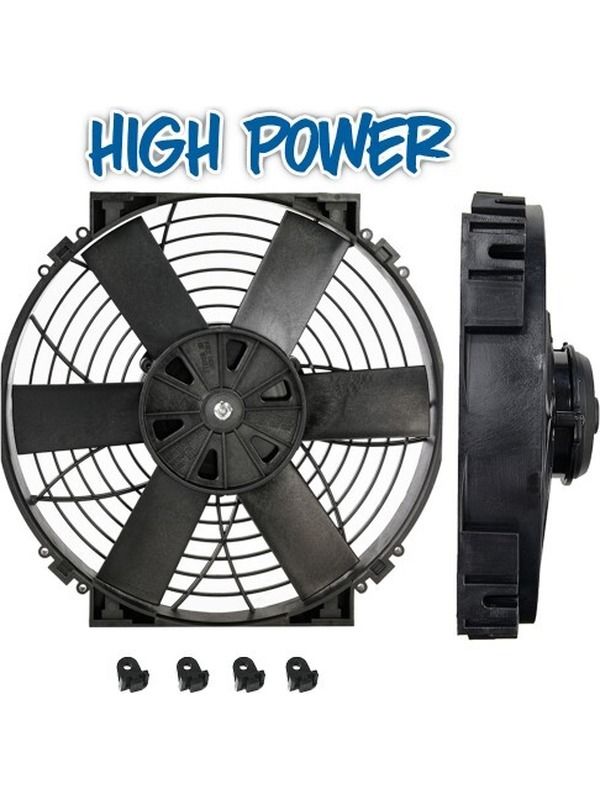

10" High Power ThermaticA Electric Fan (12 Volt) (Part #0150)
All Davies Craig ThermaticA Fan are packaged with fan assembly (motor, fan blade, shroud, and mounting feet) and are available with a brushed or long-life brushless motor.
ThermaticA Electric Fans are suitable for use as:
- Radiator cooling fans
- Air conditioner condenser fans
- Transmission and engine oil cooler fans
It provides constant or variable airflow, increased fuel economy, improved air conditioning performance, cooler engine temperatures, low profile, high performance, increased engine power, and fully reversible blades and polarity for bi-directional airflow.
These fan assemblies are set up for upstream/pusher applications from the factory.
For downstream applications, the fan blade must be removed and turned over, and the wiring adjusted as per the instructions. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and fastening the unit to the radiator.
| SPECIFICATIONS | |
| Airflow | 1000 CFM (cubic feet/min) |
| Maximum Current | 19A (12 Volt), 10A (24 Volt) |
| Weight | 1.5 kg (3.3 lb) |
| Height | 278 mm |
| Width | 275 mm |
| Depth | 84 mm |
| COMPONENTS | |
| Description | Units |
| 10" High Power ThermaticA Electric Fan (12V) | 1 |
| Mounting Feet | 4 |
