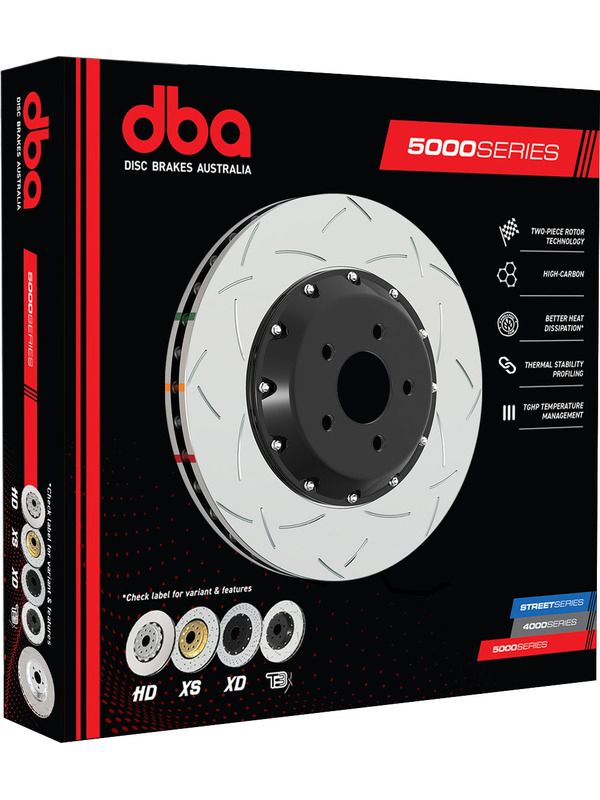

DBA 5000 T3 Slotted Disc Brake Rotor (Single) Black 345mm DBA52832BLKS

DBA 5000 T3 Slotted Disc Brake Rotor (Single) Black 345mm Fits Audi, Porsche

Sharing all the benefits of the 4000 Series, DBAs 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6)

The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminium hats.

The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, while allowing for uniform radial disc expansion through the cast iron rings, and reduced heat transfer from disc to hub via the aluminium hats.

This allows drivers to re-use their DBA 5000 Series hats with DBA replacement flat discs (rings).

DBA recommends the 5000 Series for high performance street vehicles, track day and club racing and rally applications.

DBAs 5000 Series rotors feature:

• Aluminium hats (T6061-T6)
• Replacement disc rotors available
• XG-150 High Carbon Alloyed Iron
• TSP (Thermal Stability Profiling)
• Thermo-graphic Paint markings (THGP)
• Direct replacement suitability
• Moisture proof corrosion protection packaging

• T3 Slot 48 precision CNC machined slots
• Kangaroo Paw 144 diamond and tear drop pillar ventilation system*
• XG150 High Carbon Alloyed Iron
• Thermographic Temperature Monitoring
• Paint protection on non-friction areas

Advantage

• Tri-Symmetrical curve slots dampens the vibration harmonics or noise
• Increased number of out-gassing exit points for brake pad friction gasses to escape through
• Universal slot design
• Increased surface area resulting in greater heat dissipation
• An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
• Special formulation designed to respond to DBAs TSP process
• Heat paint markings change colour at specific temperature thresholds
• When temperature thresholds are exceeded paint markings will permanently change colours
• Reduces corrosion

Benefit

• A quieter, responsive and smoother brake pedal feel
• Increases the consistency and effectiveness of every brake stop
• Eliminates the need for left and right discs
• Minimises brake fade and increases braking effectiveness
• Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs
• Minimises warping and cracking and prolongs the service life of the rotor
• Offers the driver a clear indication of peak braking temperatures
• Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims
• Stops any unsightly rust formation

*Kangaroo Paw is not available on all part numbers

Suitable for the various Australian vehicle models listed below. This is a guide only.
Add your vehicle details to My Garage to ensure it fits your vehicle. This will activate our 100% Fitment Guaranteed.

• Audi A4 Allroad 2.0 B8,8KH Avant TDI quattro 2013-2016
• Audi A4 1.8 B8,8K2 TFSI 2007-2015
• Audi A4 1.8 B8,8K5 Avant TFSI 2007-2015
• Audi A4 2.0 B8,8K2 TDI 2007-2015
• Audi A4 2.0 B8,8K2 TFSI 2008-2015
• Audi A4 2.0 B8,8K2 TFSI quattro 2008-2015
• Audi A4 2.0 B8,8K5 Avant TDI 2008-2015
• Audi A4 2.0 B8,8K5 Avant TFSI 2008-2015
• Audi A4 2.0 B8,8K5 Avant TFSI quattro 2008-2015
• Audi A4 2.7 B8,8K2 TDI 2007-2012
• Audi A4 2.7 B8,8K5 Avant TDI 2008-2012
• Audi A4 3.0 B8,8K2 TDI quattro 2007-2012
• Audi A4 3.0 B8,8K5 Avant TDI quattro 2008-2012
• Audi A4 3.2 B8,8K2 FSI quattro 2007-2012
• Audi A5 1.8 8F7 TFSI 2011-2016
• Audi A5 1.8 8TA Sportback TFSI 2011-2017
• Audi A5 2.0 8F7 TFSI 2009-2012
• Audi A5 2.0 8F7 TFSI quattro 2009-2017
• Audi A5 2.0 8T3 TFSI 2008-2012
• Audi A5 2.0 8T3 TFSI quattro 2008-2017
• Audi A5 2.0 8TA Sportback TDI 2011-2017
• Audi A5 2.0 8TA Sportback TDI quattro 2011-2017
• Audi A5 2.0 8TA Sportback TFSI 2009-2014
• Audi A5 2.0 8TA Sportback TFSI quattro 2009-2017
• Audi A5 3.0 8F7 TDI quattro 2009-2017
• Audi A5 3.0 8F7 TFSI quattro 2011-2017
• Audi A5 3.0 8T3 TDI quattro 2007-2017
• Audi A5 3.0 8T3 TFSI quattro 2011-2017
• Audi A5 3.0 8TA Sportback TDI quattro 2009-2017
• Audi A5 3.0 8TA Sportback TFSI quattro 2011-2017
• Audi A5 3.2 8F7 FSI quattro 2009-2012
• Audi A5 3.2 8T3 FSI 2007-2012
• Audi A5 3.2 8T3 FSI quattro 2007-2012
• Audi A6 Allroad 3.0 4GH,4GJ Avant TDI quattro 2014-2018
• Audi A6 1.8 C7,4GC,4G2 TFSI 2014-2018
• Audi A6 2.0 C7,4GC,4G2 TDI 2011-2018
• Audi A6 2.0 C7,4GC,4G2 TFSI 2011-2018
• Audi A6 2.0 C7,4GC,4G2 TFSI quattro 2014-2018
• Audi A6 2.0 C7,4GD,4G5 Avant TDI 2011-2018
• Audi A6 2.0 C7,4GD,4G5 Avant TFSI 2011-2018
• Audi A6 2.8 C7,4GC,4G2 FSI quattro 2010-2015
• Audi A6 3.0 C7,4GC,4G2 TDI 2014-2018
• Audi A6 3.0 C7,4GC,4G2 TDI quattro 2011-2018
• Audi A6 3.0 C7,4GC,4G2 TFSI quattro 2011-2018
• Audi A6 3.0 C7,4GD,4G5 Avant TDI quattro 2014-2018
• Audi A7 2.0 4GA,4GF Sportback TFSI quattro 2015-2018
• Audi A7 3.0 4GA,4GF Sportback TDI quattro 2010-2018
• Audi A7 3.0 4GA,4GF Sportback TFSI quattro 2010-2012
• Audi Q5 2.0 8RB TDI quattro 2012-2017
• Audi Q5 2.0 8RB TFSI quattro 2008-2017
• Audi Q5 3.0 8RB TDI quattro 2008-2017
• Audi Q5 3.0 8RB TFSI quattro 2012-2017
• Audi Q5 3.2 8RB FSI quattro 2008-2012
• Audi S4 3.0 B8,8K2 S4 quattro 2008-2015
• Audi S4 3.0 B8,8K5 Avant S4 quattro 2008-2015
• Audi S5 3.0 8F7 S5 quattro 2009-2017
• Audi S5 3.0 8T3 S5 quattro 2011-2017
• Audi S5 3.0 8TA Sportback S5 quattro 2010-2017
• Audi S5 4.2 8T3 S5 quattro 2007-2012
• Audi S6 4.0 C7,4GC,4G2 S6 quattro 2012-2018
• Audi S7 4.0 4GA,4GF Sportback S7 quattro 2012-2018
• Audi SQ5 3.0 8RB SQ5 TDI quattro 2012-2017
• Porsche Macan 3.0 95B GTS 2015-2018
• Porsche Macan 3.0 95B S 2014-2018
• Porsche Macan 3.0 95B S Diesel 2014-2018
• Porsche Macan 3.6 95B Turbo 2014-2018
