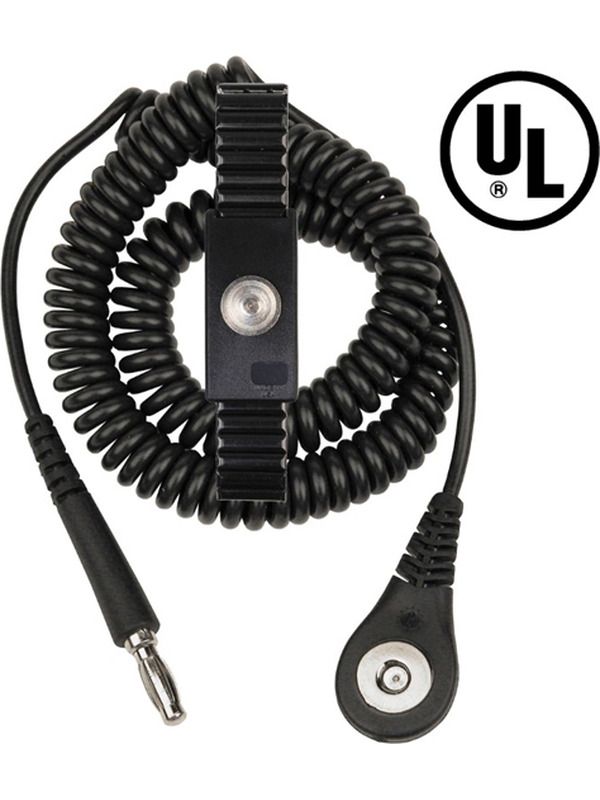

Desco Jewel, Magsnap Adjustable Metal Wrist Strap & Cord 12' 9188
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Desco Jewel, Magsnap Adjustable Metal Wrist Strap & Cord 12' features
- Revolutionary magnetic interconnect technology
Creates magnetic connection between wristband and coil cord; meets ESD S1.1, including disengagement force test (1-5 lbs) - More reliable design
Socket removed, whose miniature springs can wear and fail - Includes 4mm steel capped parking station adapter
Allows users to use new MagSnap interconnect system with constant monitors using 4mm snap studs for parking station - Premium metal expansion wrist strap with more reliable path-to-ground*
Comfortable, designed not to pinch or pull hair - Durable metal band
Long wearing, easy to clean - Superior contact with skin
For reliable removal of generated static charges - Non-flaking or scratching laminated insulator on all external surfaces
Protects wearers from electrical hazards; provides many years of product life - UL listed - coil cord includes 1 megohm resistor
- Desco Jewel, Magsnap Adjustable Metal Wrist Strap & Cord 12' has date coded
Providing lot tractability to ensure quality control - Superior resistor connection strain relief
Superior reliability. Greatly exceeds ESD S1.1Bending Life Test. Tested at over 1,000,000 cycles vs. the 16,000 requirement - Desco Jewel, Magsnap Adjustable Metal Wrist Strap & Cord 12' is made in the United States ofAmerica
What the ESD Association says about wrist straps Overview
* "Note: Metal expansion bracelet style wrist cuffs may trap moisture underneath and can be more effective for people with dry skin." [ESD Handbook TR20.20 section 5.3.2.4.3]
Per ESD Handbook TR20.20 section 5.3.9.1 Wrist Strap Checkers - Wrist strap checkers have historically been the primary tool for testing the operation of the wrist strap system including, the wristband, grounding cord and most importantly, the electrical integrity of the contact between the wristband and the wearer. Wrist strap checkers measure the resistance of the entire system.
Circumference - Regular: 5.5" - 13"
NOTE: All bands have a 4mm snap stud. Complete wrist strap kits include an alligator clip. Wrist strap kits include an alligator clip for occasions when a grounded banana jack is not available. However, best industry practice is that ESD Ground Connections should be firm fitting connecting devices such as metallic crimps, snaps and banana plugs to be connected to designated ground points. Use of alligator clips is not recommended. (Ref: JEDEC Standard No. 625-A)
Jewel Wrist Bands meet and exceed the Wrist Band and Wrist Cord requirements of ANSI/ESD S20.20
ANSI/ESD S20.20 Paragraph 6.2.2.1 Personnel Grounding Requirement "All personnel shall be bonded or electrically connected to ground or contrived ground when handling ESD sensitive items. When personnel are seated at ESD protective workstations, they shall be connected to the common point via a wrist strap system.
