Desco Mini Monitor, Jewel Kit, North America 19242

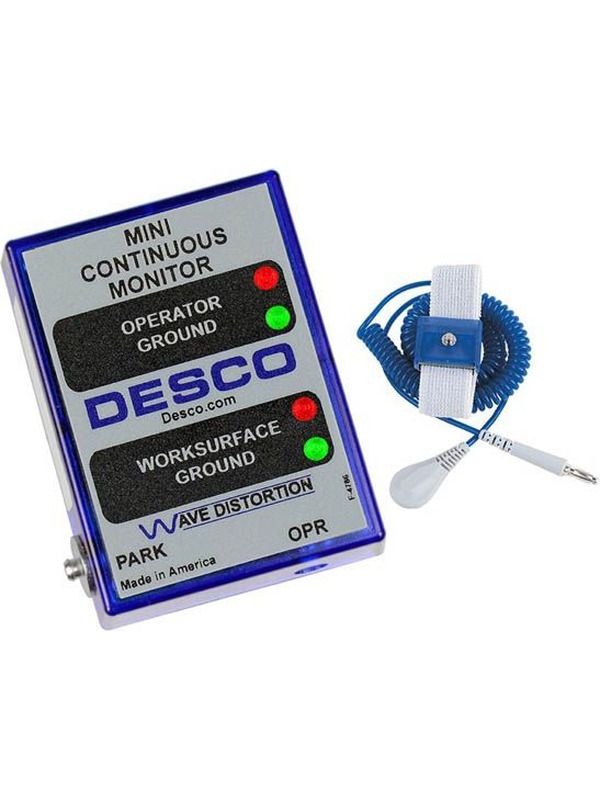

Desco 19242 - Mini Monitor, Jewel Kit, North America Features

• Single Workstation Continuous Monitor with 09100 Jewel® Wrist Strap
  Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
• IMPROVED Operator Alarm
  Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug and monitor’s jack is intermittent
• Desco Wave Distortion Technology
  Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
• Park Snap
  Allows the operator to disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm
• Single-Wire Impedance Design
  Desco 19242 - Mini Monitor, Jewel Kit, North America Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
• 1.2 Volt Operator Test Voltage
  Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
• <50 Millisecond Alarm Response Time
  Identifies failures and intermittencies that inferior technologies miss
• Continuous Visual and Audible Alarms
  Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs
• Calibration Verification
  Use the Desco 98221 Monitor Calibration Unit to check the test limits of Wave Distortion Monitors without removing them from their workstations
• NIST Calibrated with Certificate Included
  Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
• 100-240VAC Power Adapter with North American Plug
  Works with standard electrical systems in North America, Japan and Asia
• Desco 19242 - Mini Monitor, Jewel Kit, North America is made in the United States of America
