Desco Tape Wescorp Maskinghi Temp 12mm X 54.8 M 81260
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

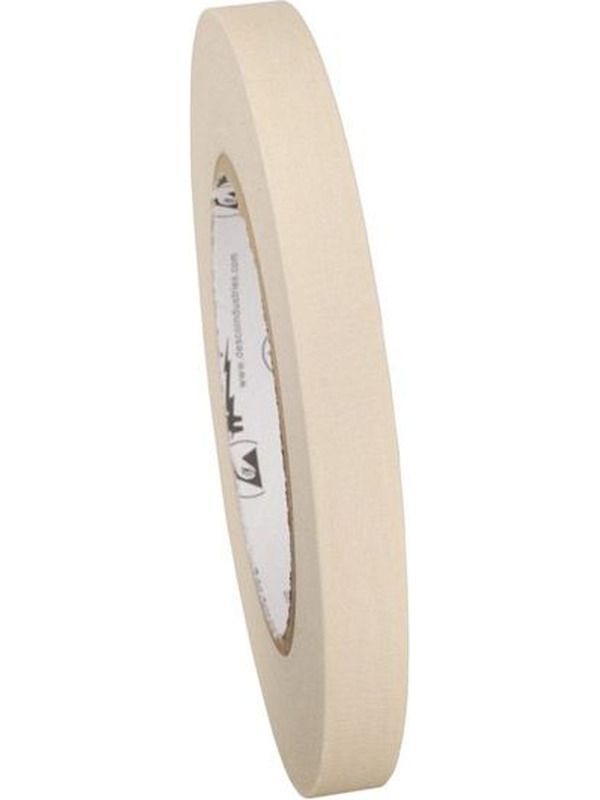

Desco Tape Wescorp Maskinghi Temp 12 MM X 54.8 MOverview
Thick conductive adhesive excellent for conformability to protect critical PCB features
Use in applications masking PCBs gold features for wave soldering or soldering under 302F (150C)
For OEM repair shops
For securing polyethylene sheeting to walls during painting
Protection purposes in manufacturing processes, strips clean
Masking application in spray and brush painting, nonstaining
For silk screening applications
Handles temperatures found in test and burn-in ovens
Easily handles high temperatures of wave soldering without leaving a residue
Ideal for masking gold leads and other components on boards populated with sensitive integrated circuits
Desco Tape Wescorp Maskinghi Temp 12 MM X 54.8 MFeatures
- Backing
- Saturated, high strength crepe paper
- Adhesive
- Natural rubber based, non-staining, solvent spread, cured
- Thickness
- 0.18 mm / 7 mils
- Adhesion Strength
- 38 N/100 mm / 35 oz/in2
- Tensile Strength
- 385 N/100 mm / 22 lbs/in2
- Temperature Resistance
- 302F (150C) - 60 minutes
- Roll length
- 55 meters (60 yards)
- Thickness
- 7.0 mil (0.18 mm)
- Adhesion to steel
- 35 oz/in2
- Elongation
- 8%
- Moisture Resistance
- Fair
- Solvent Resistance
- Good
- Storage Stability
- Excellent
- Temperature Range
- -32F to + 275F
- Max Temp
- 275F (135C) 45 minutes max
- Made in the United States of America
