Desco Ws Aware Monitor 4.20Ma Out Standard Remotes No Power CTC062-3-242-T
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.
Desco Ws Aware Monitor 4.20Ma Out Standard Remotes No PowerOverview
Continuously monitors the path-to-ground integrity of two operators and four metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components
Alarms if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item
Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage
Monitor can be installed at eye level, and remote terminals can be mounted at desired locations up to 10 feet away. Each remote terminal includes a monitored jack for operators and an unmonitored jack for visitors.
Interfaces with data acquisition systems that accept a 4.20 mA input signal
Use the CTA245 Replacement Jack PCB to easily replace the operator jack without the use of solder
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology
Desco Ws Aware Monitor 4.20Ma Out Standard Remotes No Power Features
- Dual Workstation Continuous Monitor
- Digital Signal Processing Technology
- Operator Body Voltage Detection
- EMI Monitoring on Metal Grounds

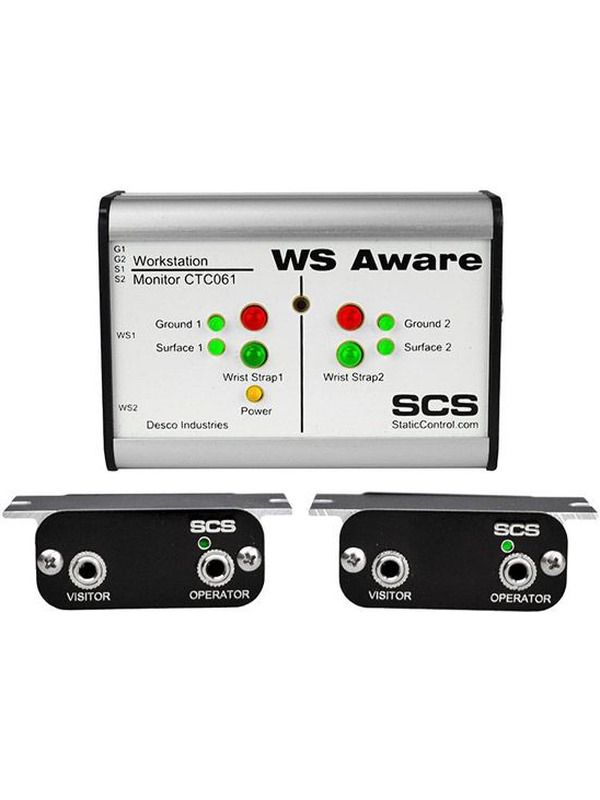

- System Includes Monitor and Two Remote Terminals
- Analog Data Output (4.20 mA)
- Use with Dual-Wire Wrist Straps
- Replaceable Dual-Wire Operator Jack
- Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
- NIST Calibrated with Certificate Included
- Power Adapter Not Included
- Assembled in the United States of America with Globally Sourced Materials
