Desco Ws Aware Monitor Relay Out Standard Remotes CTC061-RT-242-WW
(Prior to Dispatch)
Type in your postcode or suburb to get an estimate on postage cost.

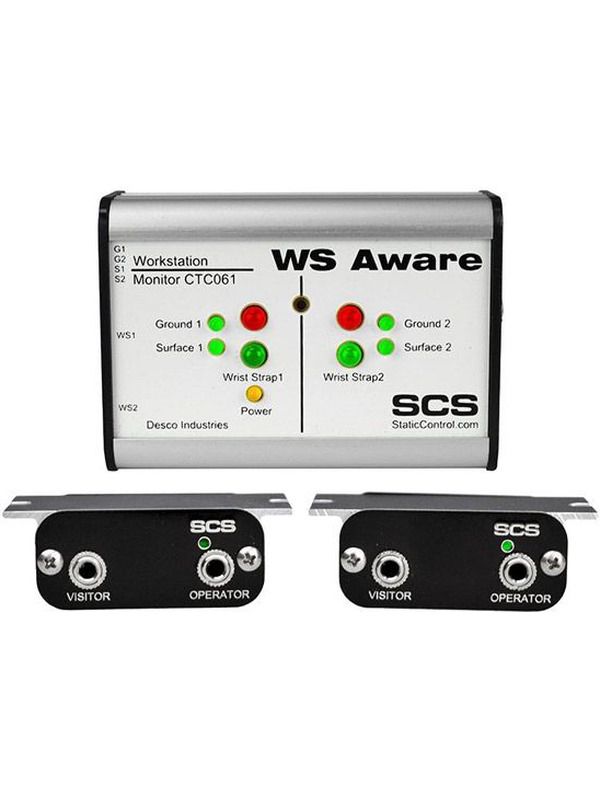

Desco Ws Aware Monitor Relay Out Standard RemotesOverview
Continuously monitors the path-to-ground integrity of two operators, two conductive or dissipative worksurfaces, and two metal tools; meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-01
Applies an ultra-low test voltage to the operator (0.05V) for the handling of sensitive components
Alarms if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item
Alarms if the grounded metal tools have high-frequency noise that could cause electrical overstress (EOS) damage
Monitor can be installed at eye level, and remote terminals can be mounted at desired locations up to 10 feet away. Each remote terminal includes a monitored jack for operators and an unmonitored jack for visitors.
Outputs 0/20 mA logic level for relay input
See SCS Dual-Wire Wrist Straps
Use the CTA245 Replacement Jack PCB to easily replace the operator jack without the use of solder
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology.
Works with standard electrical systems in North America, United Kingdom, Japan, Asia and Europe
Desco Ws Aware Monitor Relay Out Standard RemotesFeatures
- Dual Workstation Continuous Monitor
- Digital Signal Processing Technology
- Operator Body Voltage Detection
- EMI Monitoring on Metal Grounds
- System Includes Monitor and Two Remote Terminals
- Relay Terminal
- Use with Dual-Wire Wrist Straps
- Replaceable Dual-Wire Operator Jack
- Calibration Unit Available for Accurate Performance and Conformity Testing in the Field
- NIST
- Calibrated with Certificate Included
- 100-240VAC Power Adapter with Interchangeable Plugs
- Assembled in the United States of America with Globally Sourced Materials
